1FDUF-IV-Z-GN
Berjaya Inverter Gastronome Upright Freezer
2FDUF-IV-Z-GN

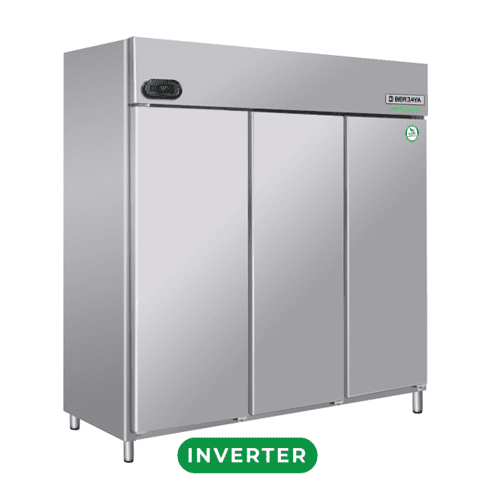

3FDUF-IV-Z-GN
Inverter Gastronome Upright Freezer
A stainless steel upright freezer range available in 1, 2 and 3 door models, holding -18 to -12 degrees Celsius with an inverter compressor and R290 refrigerant for lower energy use.
Berjaya Inverter Gastronome Upright Freezer is built for kitchens that need reliable frozen storage without the running costs of a fixed-speed compressor, from small back-of-house setups through to high-volume central kitchens. The items with an inverter compressor, R290 refrigerant, and stainless steel construction throughout. Shelving or foodpan configurations and castor wheel or bullet feet options are available across all three models.
Inverter Gastronome Upright Freezer specifications
| MODEL | 1 Door 1FDUF-IV-Z-GN | 2 Door 2FDUF-IV-Z-GN | 3 Door 3FDUF-IV-Z-GN |
| Temperature °C (Celsius) | -18 to -12 | -18 to -12 | -18 to -12 |
| External Dimension (mm) | 680 x 840 x 2060 | 1350 x 840 x 2060 | 2020 x 840 x 2060 |
| Gross Volume (Litres) | 555 | 1192 | 1846 |
| Energy Consumption (kWh / Day) * | 3.7 | 5.7 | 7.6 |
| Energy Savings (kWh / Day) * | 6.9 | 10.2 | 16.1 |
| Energy Savings Up to (% / Year) * | 65 | 64 | 61.64 |
| Voltage/ Phase (V/ Ph) | 220 – 230V/ 1 | 220 – 230V/ 1 | 220 – 230V/ 1 |
| Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 |
| Cooling Capacity (W) | 675 | 939 | 1551 |
| Ampere (A) | 2.07 | 3.65 | 4.89 |
| Wattage (W) | 246.4 | 448.1 | 659.9 |
| Refrigerant | R290 | R290 | R290 |
| Defrost System | Electric Heater | Electric Heater | Electric Heater |
| PVC Coated Shelving | 5 | 10 | 15 |
| Weight (kg) | 135 | 195 | 260 |
Frequently asked questions
What temperature range does the Inverter Gastronome Upright Freezer maintain?
The Inverter Gastronome Upright Freezer holds -18 to -12 degrees Celsius across all three models, the 1-door, 2-door and 3-door, which is the accepted band for storing frozen stock.
What is R290 refrigerant and why does it matter?
R290 is a natural hydrocarbon refrigerant with a very low global warming potential compared with older synthetic gases. The Inverter Gastronome Upright Freezer uses it across the whole range, which keeps the equipment ahead of refrigerant phase-down rules in Malaysia.
What does the inverter compressor actually change day to day?
It varies its speed with the load instead of switching on and off at full power. In practice that means a lower starting current, a quieter kitchen, steadier holding temperatures and a lower electricity bill than a fixed-speed equivalent.
What defrost system does the freezer use?
An automatic electric heater defrost system, which keeps energy consumption down and the defrost cycle as short as possible, with no manual defrosting needed.
Note : Standard Product can be supplied with either
1. Shelving / Foodpan
2. Castor Wheel / Bullet Feet
Remarks:
* Energy Savings compared with Standard Model
* In-House Laboratory Testing Report
Disclaimer:
– Specifications and design are subject to change without prior notice.
– All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
– Product photos are for illustration purposes only and may differ from the actual product.
Features
These features work together to keep the Inverter Gastronome Upright Freezer range running quietly, holding temperature evenly and costing less to operate over its lifetime.
- Inverter Compressor, low starting current, high energy efficiency and low acoustic level with variable-speed technology.
- Solid Door maintain the desired temperature inside the refrigerator, contributing to better energy efficiency.
- R290 Environmental friendly refrigerant
- Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.
- Durable stainless steel exterior and interior, Full-length door handle.
- Automatic defrost system saves energy consumption and provide the shortest possible defrost cycle.
- Ventilated System assisted with fan to ensure homogeneous coolness in the storage space.
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Standard product can be supplied with either Shelving / Foodpan
