1FDUC-IV-Z-GN
Berjaya Inverter Gastronome Upright Chiller
2FDUC-IV-Z-GN
3FDUC-IV-Z-GN

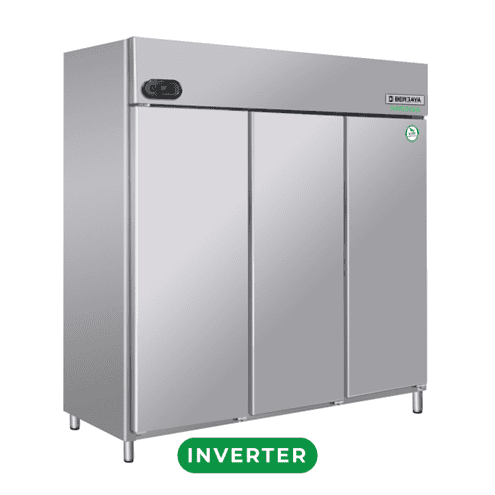

Inverter Gastronome Upright Chiller
A stainless steel Gastronome upright chiller range in 1, 2 and 3 door models, holding +2 to +8 degrees Celsius on R290 refrigerant with an inverter compressor for lower energy use and a quieter kitchen.
Berjaya Inverter Gastronome Upright Chiller range gives kitchens a stainless steel storage chiller built around an inverter compressor, sized for operations that need one, two or three doors of GN-compatible chilled space. All Items hold +2 to +8 degrees Celsius on R290 refrigerant, so a busy prep kitchen and a small satellite kitchen can run the same door design at the capacity each actually needs.
Inverter Gastronome Upright Chiller specifications
| Model | 1 Door 1FDUC-IV-Z-GN | 2 Door 2FDUC-IV-Z-GN | 3 Door 3FDUC-IV-Z-GN |
| Temperature °C (Celsius) | +2 to +8 | +2 to +8 | +2 to +8 |
| External Dimension (mm) | 680 x 840 x 2060 | 1350 x 840 x 2060 | 2020 x 840 x 2060 |
| Gross Volume (Litres) | 555 | 1192 | 1846 |
| Energy Consumption (kWh / Day) * | 1.1 | 1.4 | 2.3 |
| Energy Savings (kWh / Day) * | 4.4 | 5.2 | n/a* |
| Energy Savings Up to (% / Year) * | 80 | 78.79 | n/a* |
| Voltage/ Phase (V/ Ph) | 220 – 230V/ 1 | 220 – 230V/ 1 | 220 – 230V/ 1 |
| Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 |
| Cooling Capacity (W) | 221.5 | 221.5 | 445 |
| Wattage (W) | 165.5 | 166 | 372.8 |
| Ampere (A) | 1.44 | 1.41 | 2.79 |
| Refrigerant | R290 | R290 | R290 |
| Defrost System | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation |
| PVC Coated Shelving | 5 | 10 | 15 |
| Weight (kg) | 130 | 180 | 250 |
Frequently asked questions
What temperature range does the Inverter Gastronome Upright Chiller hold?
The Inverter Gastronome Upright Chiller holds +2 to +8 degrees Celsius across the 1, 2 and 3 door models, the standard band for chilled food storage.
What is R290 refrigerant and why does it matter?
R290 is a natural hydrocarbon refrigerant with a very low global warming potential compared with older synthetic gases. The Inverter Gastronome Upright Chiller uses R290 across every door configuration, which keeps the equipment ahead of refrigerant phase-down rules in Malaysia.
What does the inverter compressor actually change day to day?
It varies its speed with the load instead of switching on and off at full power. In the Inverter Gastronome Upright Chiller that means a lower starting current, a quieter kitchen, steadier holding temperatures and lower energy consumption than a fixed-speed equivalent.
What defrost system does the chiller use?
The Inverter Gastronome Upright Chiller uses a forced air circulation defrost system, which keeps energy consumption down and avoids manual defrosting.
Note : Standard Product can be supplied with either
1. Shelving / Foodpan
2. Castor Wheel / Bullet Feet
Remarks:
* Energy Savings compared with Standard Model
* In-House Laboratory Testing Report
Disclaimer:
– Specifications and design are subject to change without prior notice.
– All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
– Product photos are for illustration purposes only and may differ from the actual product.
Features
These features explain how the Inverter Gastronome Upright Chiller range holds a steady chill while keeping running costs and noise down.
- Inverter Compressor, low starting current, high energy efficiency and low acoustic level with variable-speed technology.
- Solid Door maintain the desired temperature inside the refrigerator, contributing to better energy efficiency.
- R290 Environmental friendly refrigerant. Faster heat transfer and lower compressor load deliver significant daily electricity savings.
- Insulation: 5.5–6 cm high-density foam insulation ensures stable, even cooling even in hot climates.
- Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.
- Durable stainless steel exterior and interior, Full-length door handle.
- Automatic defrost system saves energy consumption and provide the shortest possible defrost cycle.
- Ventilated System assisted with fan to ensure homogeneous coolness in the storage space.
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Standard product can be supplied with either Shelving / Foodpan
