1DDF-IV-BB
Berjaya Inverter Display Freezer
2DDF-IV-BB

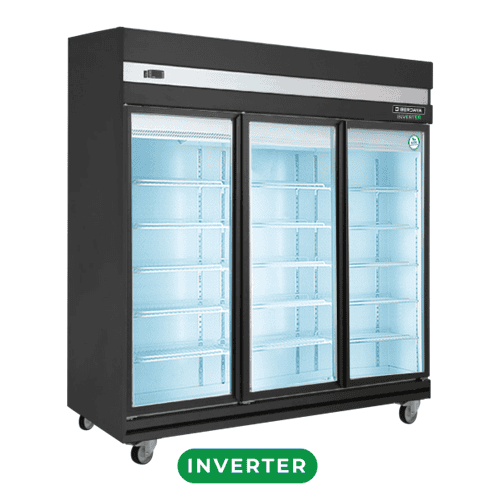

3DDF-IV-BB

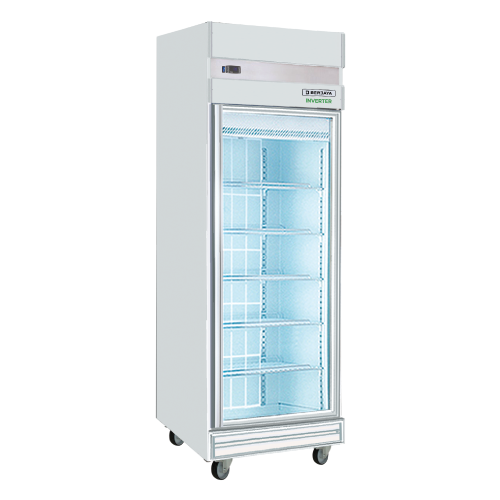

1DDF-IV-WB

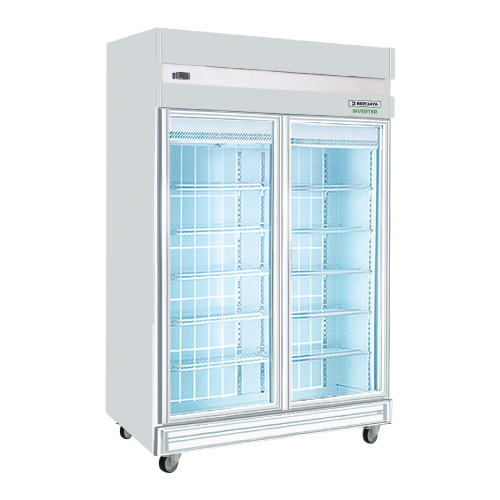

2DDF-IV-WB

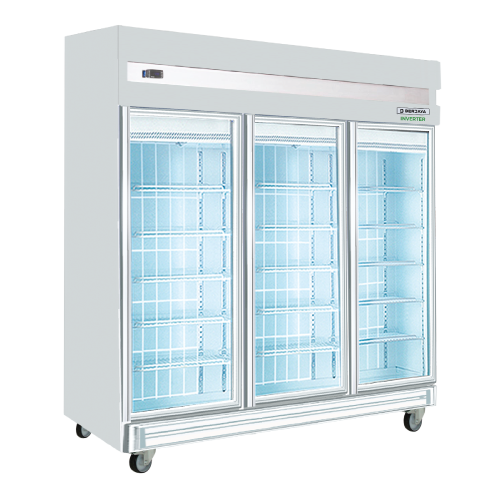

3DDF-IV-WB

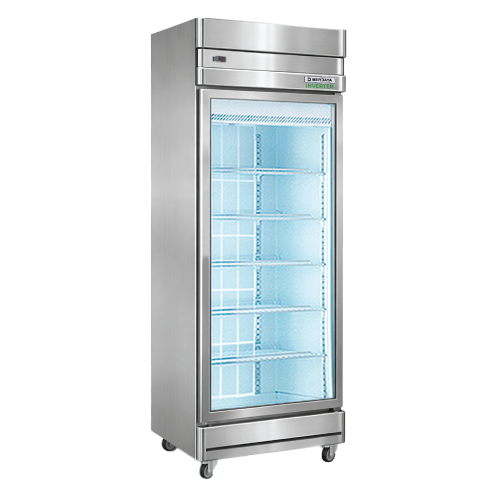

1DDF-IV-SB

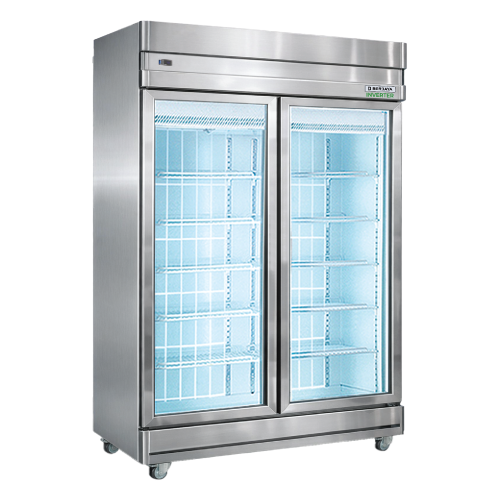

2DDF-IV-SB

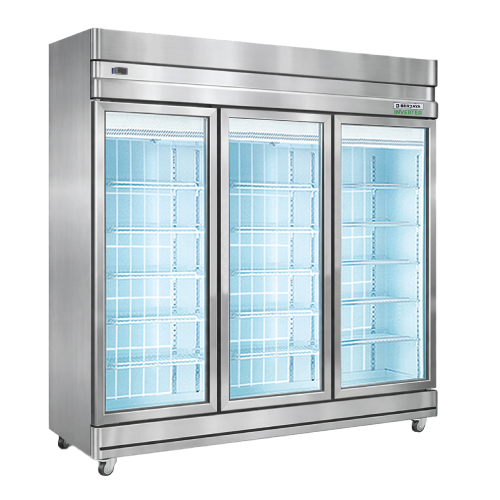

3DDF-IV-SB
Inverter Display Freezer
A glass-door inverter display freezer for retail and food outlets, offered in 1, 2 and 3 door models across black, white and stainless steel finishes. Runs on R290 refrigerant with an inverter compressor for steadier holding temperatures and lower running costs.
Berjaya Inverter Display Freezer is built for shops, bakeries and food outlets that need to merchandise frozen stock through glass while keeping running costs down. The range with 1, 2 and 3 door cabinets each offered in black, white or stainless steel body finishes. Every model shares the same inverter compressor, R290 refrigerant and Low-E heater glass, so the choice comes down to how many doors of display you need.
Inverter Display Freezer specifications
| Model – Black Body – White Body – Stainless Steel Body | 1 Door 1DDF-IV-BB 1DDF-IV-WB 1DDF-IV-SB | 2 Door 2DDF-IV-BB 2DDF-IV-WB 2DDF-IV-SB | 3 Door 3DDF-IV-BB 3DDF-IV-WB 3DDF-IV-SB |
| Temperature °C (Celsius) | -18 to -12 | -18 to -12 | -18 to -12 |
| External Dimension (mm) | 635 x (710 + 20) x 2060 | 1260 x (710 + 20) x 2060 | 1880 x (710 + 20) x 2060 |
| Gross Volume (Litres) | 404 | 882 | 1367 |
| Energy Consumption (kWh / Day) * | 4.8 | 7.7 | 9.4 |
| Energy Savings (kWh / Day) * | 13.9 | 26.8 | 40.2 |
| Energy Savings Up to (% / Year) * | 74.33 | 77.68 | 81.05 |
| Voltage/ Phase (V / Ph) | 220 – 230V/ 1 | 220 – 230V/ 1 | 220 – 230V/ 1 |
| Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 |
| Cooling Capacity (W) | 675 | 939 | 1251 |
| Ampere (A) | 2.69 | 3.63 | 3.79 |
| Wattage (W) | 323.10 | 456.10 | 474.60 |
| Refrigerant | R290 | R290 | R290 |
| Defrost System | Electric Heater | Electric Heater | Electric Heater |
| PVC Coated Shelving | 5 | 10 | 15 |
| Weight (kg) | 102.5 – 112 | 167 – 179 | 232 – 245 |
Frequently asked questions
What is R290 refrigerant and why does it matter?
R290 is a natural hydrocarbon refrigerant with a very low global warming potential compared with older synthetic gases. The Inverter Display Freezer range uses it as standard, which keeps the equipment ahead of refrigerant phase-down rules in Malaysia.
What does the inverter compressor actually change day to day?
It varies its speed with the load instead of switching on and off at full power. For the Inverter Display Freezer range that means a lower starting current, a quieter kitchen or shop floor, steadier holding temperatures and lower electricity use than a fixed-speed equivalent.
What defrost system does the Inverter Display Freezer use?
The Inverter Display Freezer uses an automatic electric heater defrost system, which keeps energy consumption down and the defrost cycle as short as possible, with no manual defrosting needed.
How much storage capacity do the different door models offer?
Gross volume runs from 404 litres in the 1 door model up to 1367 litres in the 3 door model, so capacity scales roughly with door count. Exact figures for each model sit in the specification table on the product page.
Remarks:
* Energy Savings compared with Standard Model
* In-House Laboratory Testing Report
Disclaimer:
- Specifications and design are subject to change without prior notice.
- All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
- Product photos are for illustration purposes only and may differ from the actual product.
Features
These features explain why the Inverter Display Freezer range holds a steady temperature behind the glass while using less power than a standard fixed-speed freezer.
- Inverter Compressor, low starting current, high energy efficiency and low acoustic level with variable-speed technology.
- Three Layer, Low-E Heater Glass energy efficiency by reducing the amount of heat that enters
or leaves the fridge. - R290 Environmentally friendly refrigerant
- Automatic defrost system saves energy consumption and provide the shortest possible defrost cycle.
- Ventilated System assisted with fan to ensure homogeneous coolness in the storage space.
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Humidity up to 75%. It is recommended to use in air-conditioned space. If the ambient humidity is higher than 75%, glass door heaters can be optionally switched on to alleviate condensation issue.
