1DDC-IV-BB
Berjaya Inverter Display Chiller
2DDC-IV-BB
3DDC-IV-BB
1DDC-IV-WB
2DDC-IV-WB
3DDC-IV-WB
1DDC-IV-SB
2DDC-IV-SB
3DDC-IV-SB

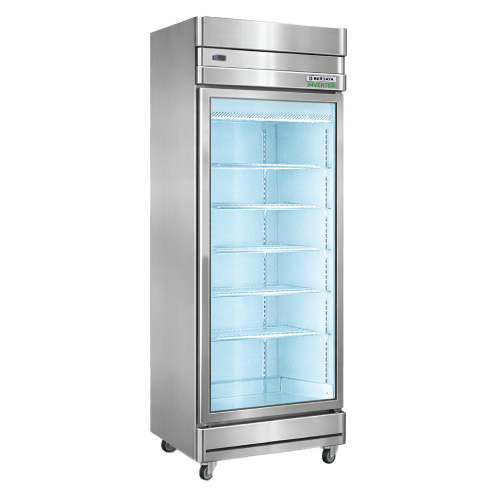

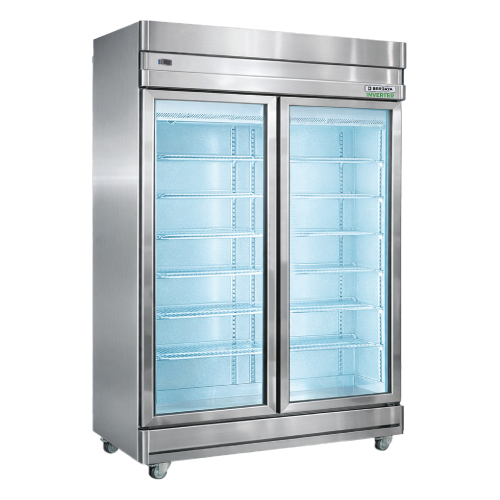

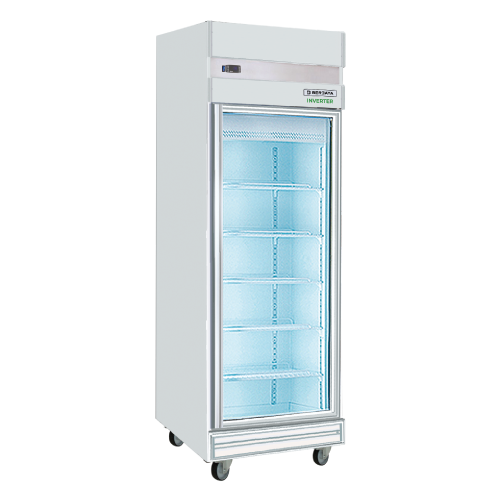

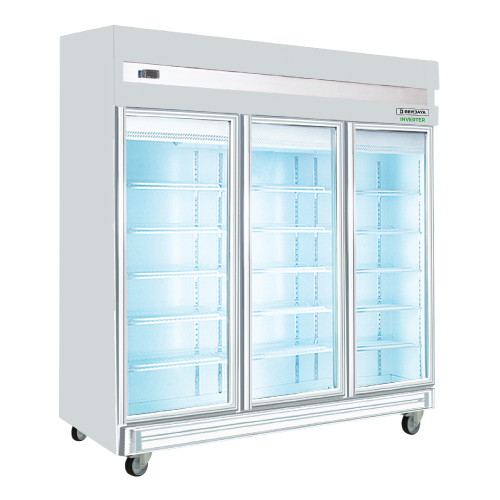

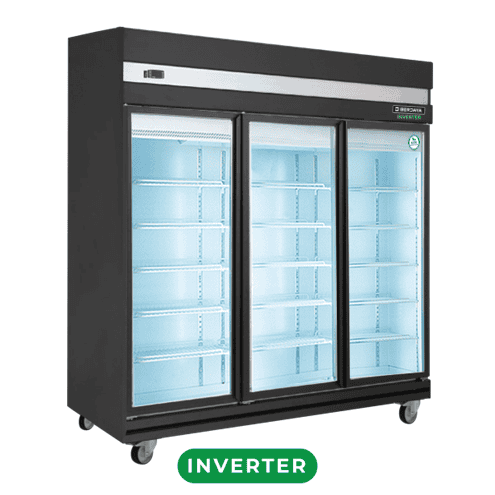

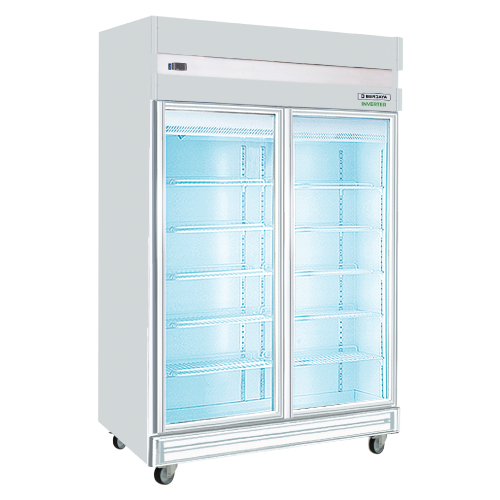

Inverter Display Chiller
A glass-door display chiller range in 1, 2 and 3 door models, holding +2 to +8°C with an inverter compressor and R290 refrigerant for lower running costs.
The Berjaya CKE Inverter Display Chiller is built for cafés, hotels and retail counters that need chilled stock on view and held at a safe +2 to +8°C without running up the power bill. The range spans 1, 2 and 3 doors, each available in black, white or stainless steel body finishes. Every model pairs an inverter technology with double-layer Low-E glass and R290 refrigerant, cutting energy use well below a standard model of the same size.
Inverter Display Chiller specifications
| Model – Black Body – White Body – Stainless Steel Body | 1 Door 1DDC-IV-BB 1DDC-IV-WB 1DDC-IV-SB | 2 Door 2DDC-IV-BB 2DDC-IV-WB 2DDC-IV-SB | 3 Door 3DDC-IV-BB 3DDC-IV-WB 3DDC-IV-SB |
| Temperature °C (Celsius) | +2 to +8 | +2 to +8 | +2 to +8 |
| External Dimension (L x W x H) (mm) | 635 x (710 + 20) x 2060 | 1260 x (710 + 20) x 2060 | 1880 x (710 + 20) x 2060 |
| Gross Volume (Litres) | 404 | 882 | 1367 |
| Energy Consumption (kWh / Day)* | 1.7 | 1.9 | 3.5 |
| Energy Savings (kWh / Day) * | 4.5 | 10.1 | 17.2 |
| Energy Savings Up to (% / Year) * | 72.58 | 84.16 | 83.09 |
| Voltage/ Phase (V / Ph) | 220 – 230V/ 1 | 220 – 230V/ 1 | 220 – 230V/ 1 |
| Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 |
| Cooling Capacity (W) | 221.5 | 221.5 | 445 |
| Ampere (A) | 1.4 | 1.45 | 2.54 |
| Wattage (W) | 167.2 | 171.1 | 344.2 |
| Refrigerant | R290 | R290 | R290 |
| Defrost System | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation |
| PVC Coated Shelving | 5 | 10 | 15 |
| Weight (kg) | 91.5 – 100 | 145 – 157 | 208.5 – 232 |
Frequently asked questions
What temperature range does the Inverter Display Chiller maintain?
The Inverter Display Chiller holds +2 to +8 degrees Celsius across all six models, which is the correct band for displaying and storing chilled food safely.
What is R290 refrigerant and why does it matter?
R290 is a natural hydrocarbon refrigerant with a very low global warming potential compared with older synthetic gases. Berjaya CKE uses R290 across the Inverter Display Chiller range, keeping it ahead of refrigerant phase-down rules in Malaysia.
What does the inverter technology actually change day to day?
It varies its speed with the load instead of switching on and off at full power. In practice that means a lower starting current, a quieter shopfloor, steadier holding temperatures and lower energy consumption than a fixed-speed equivalent.
How many shelves and how much storage does each door size offer?
The 1-door model comes with 5 shelves and 404 litres gross volume, the 2-door model with 10 shelves and 882 litres, and the 3-door model with 15 shelves and 1367 litres, so you can match capacity to counter space.
What power supply does the display chiller need?
The Inverter Display Chiller runs on 220-230V single-phase power at 50 or 60 Hz, standard for commercial kitchen electrical setups in Malaysia, so no special supply is needed.
What happens if the display area is humid?
The chiller is rated for humidity up to 75% and is recommended for air-conditioned spaces. If ambient humidity runs higher, optional glass door heaters can be switched on to stop condensation forming on the glass.
Remarks:
* Energy Savings compared with Standard Model
* In-House Laboratory Testing Report
Disclaimer:
- Specifications and design are subject to change without prior notice.
- All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
- Product photos are for illustration purposes only and may differ from the actual product.
Features
These features work together to keep the Inverter Display Chiller range quiet, energy-efficient and steady on temperature while stock stays visible to customers.
- Inverter Compressor, low starting current, high energy efficiency and low acoustic level with variable-speed technology.
- Double Layer, Low-E Heater Glass energy efficiency by reducing the amount of heat that enters or leaves the fridge.
- R290 Environmentally friendly refrigerant
- Automatic defrost system saves energy consumption and provide the shortest possible defrost cycle.
- Ventilated System assisted with fan to ensure homogeneous coolness in the storage space.
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Humidity up to 75%. It is recommended to use in air-conditioned space. If the ambient humidity is higher than 75%, glass door heaters can be optionally switched on to alleviate condensation issue.
