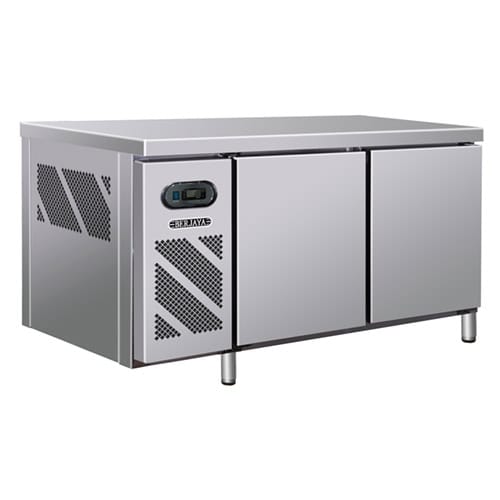

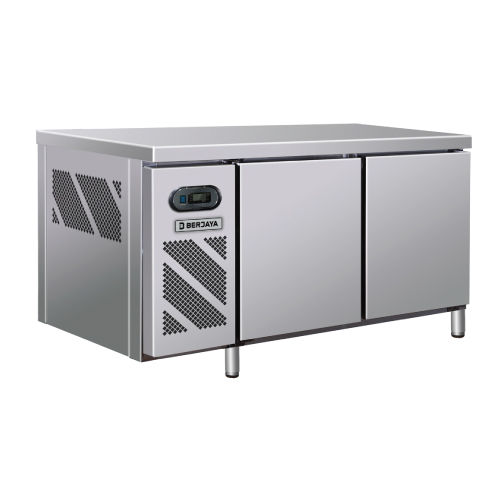

Dual Counter Chiller & Freezer (2 Door)

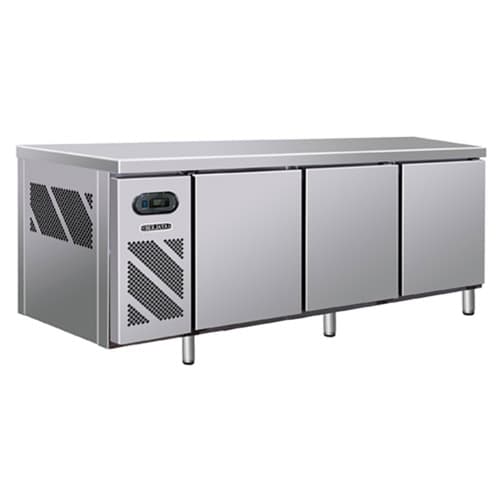

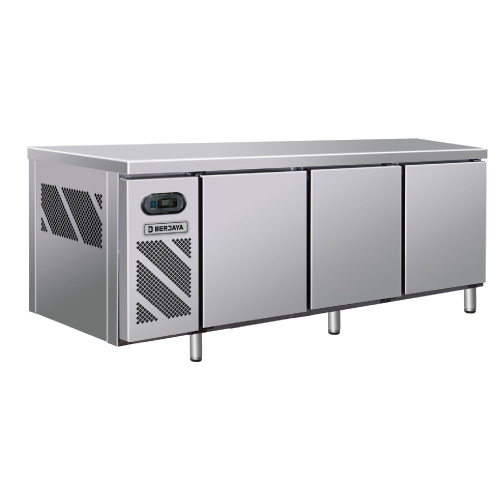

Dual Counter Chiller & Freezer (3 Door)
Description
| Model – R290 Refrigerant – R404a Refrigerant | 2 Door – 4′ 2DCF4-29-Z BS 2DCF4/Z | 2 Door – 5′ 2DCF5-29-Z BS 2DCF5/Z | 2 Door – 6′ 2DCF6-29-Z BS 2DCF6/Z | 3 Door – 7′ 3D2C1F7-29-Z BS 3D2C1F7/Z | 3 Door – 8′ 3D2C1F8-29-Z BS 3D2C1F8/Z | |
| Temperature °C (Celsius) | Chiller | +2 to +8 | +2 to +8 | +2 to +8 | +2 to +8 | +2 to +8 |
| Freezer | -18 to -12 | -18 to -12 | -18 to -12 | -18 to -12 | -18 to -12 | |
| External Dimension (mm) | 1200 x 760 x 840 | 1500 x 760 x 840 | 1800 x 760 x 840 | 2100 x 760 x 840 | 2400 x 760 x 840 | |
| Gross Volume (Litres) | Chiller (right) | 127 | 178 | 230 | 375 | 445 |
| Freezer (left) | 127 | 178 | 230 | 183 | 224 | |
| Voltage / Frequency (V/Hz) | 230v / 1 / 50Hz 220v / 1 / 60Hz | 230v / 1 / 50Hz 220v / 1 / 60Hz | 230v / 1 / 50Hz 220v / 1 / 60Hz | 230v / 1 / 50Hz 220v / 1 / 60Hz | 230v / 1 / 50Hz 220v / 1 / 60Hz | |
| Cooling Capacity (W) | 362 | 415 | 415 | 680 | 680 | |
| Wattage (W) | 371 – 409 | 418 – 462 | 456 – 504 | 462 – 510 | 474 – 522 | |
| Ampere(A) | 2.5 – 2.7 | 2.8 – 3.2 | 3.0 – 3.4 | 3.1 – 3.5 | 3.3 – 3.7 | |
| Refrigerant | R404a | R404a | R404a | R404a | R404a | |
| Defrost System | Electric Heater | Electric Heater | Electric Heater | Electric Heater | Electric Heater | |
| PVC Coated Shelving | 4 | 4 | 4 | 6 | 6 | |
| Weight (kg) | 88 | 107 | 119 | 141 | 151 | |
| Unit for 20ft Container | 22 | 20 | 14 | 14 | 8 | |
| Unit for 40ft Container | 46 | 42 | 28 | 28 | 16 | |
Disclaimer:
- Specifications and design are subject to change without prior notice.
- All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
- Product photos are for illustration purposes only and may differ from the actual product.
Features
Features
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Insulated partition between left freezer and right chiller compartment ensures temperature integrity of each product zone.
- Refrigeration system protected from corrosion by urethane-treated evaporator coil.
- Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.
- Environmentally friendly refrigerant
