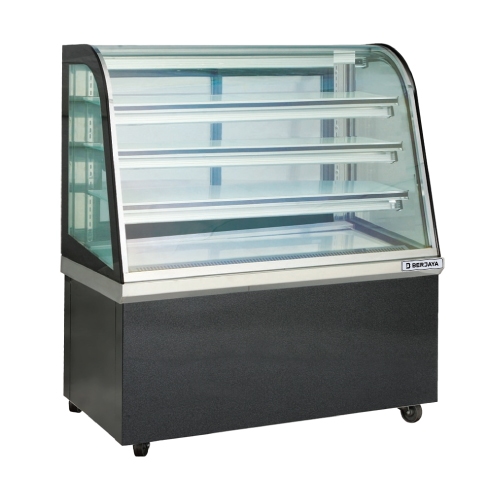

Colourbond Base – Curve & Rectangular

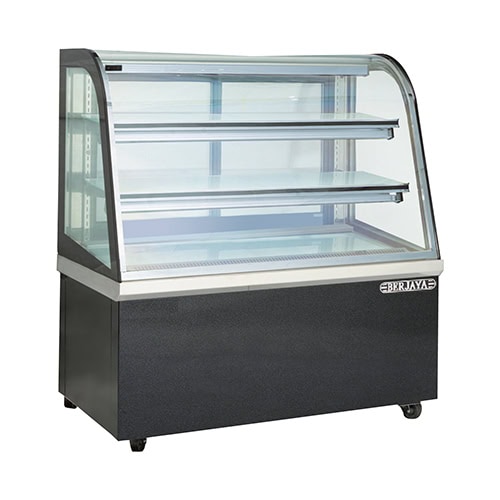

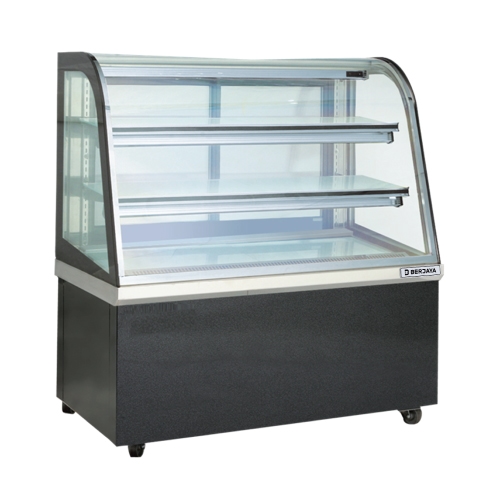

Curve : 2 Tier
Curve : 3 Tier

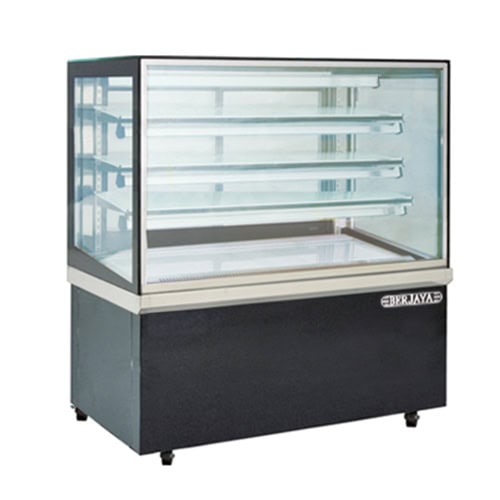

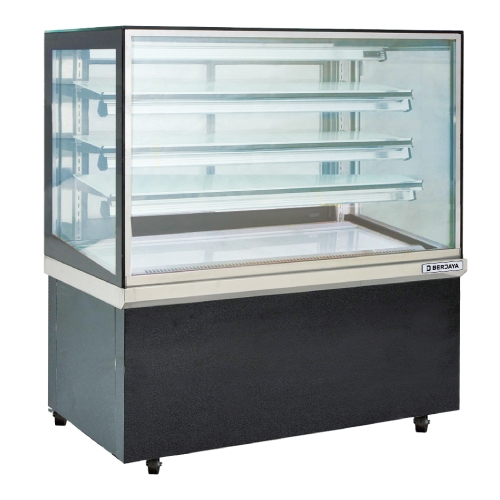

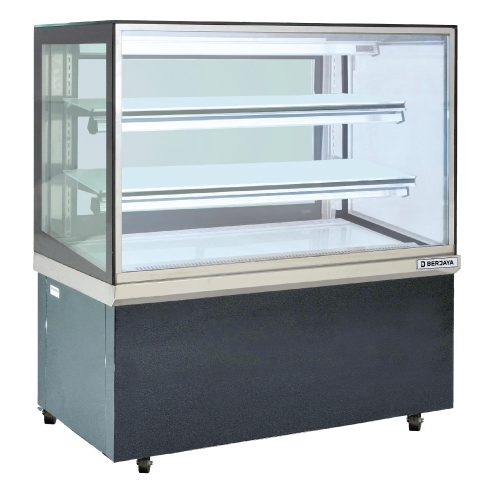

Rectangular : 2 Tier
Rectangular : 3 Tier |
HDW09SB13-2
HDW09SB13-3
RHDW09SB13-2
RHDW09SB13-3 |
HDW12SB13-2
HDW12SB13-3
RHDW12SB13-2
RHDW12SB13-3 |
HDW15SB13-2
HDW15SB13-3
RHDW15SB13-2
RHDW15SB13-3 |
HDW18SB13-2
HDW18SB13-3
RHDW18SB13-2
RHDW18SB13-3 |
HDW24SB13-2
HDW24SB13-3
RHDW24SB13-2
RHDW24SB13-3 |
Product Dimension
(L x W x H)(mm) |
900 x 700 x 1350 |
1200 x 700 x 1350 |
1500 x 700 x 1350 |
1800 x 700 x 1350 |
2400 x 700 x 1350 |
Packing Dimension
(L x W x H)(mm) |
950 x 770 x 1380 |
1250 x 770 x 1380 |
1550 x 770 x 1380 |
1850 x 770 x 1380 |
2450 x 770 x 1380 |
| Temperature Range |
40°C ~ 70°C |
40°C ~ 70°C |
40°C ~ 70°C |
40°C ~ 70°C |
40°C ~ 70°C |
| Normal Amps (A) |
7.00 |
7.5 |
7.6 |
14.6 |
15 |
| Total Load (W) |
1660 |
1730 |
1750 |
3350 |
3460 |
| Packing Volume (m3) |
1.00 |
1.33 |
1.65 |
1.97 |
2.60 |
Stainless Steel Base – Curve & Rectangular
Curve : 2 Tier
Curve : 3 Tier

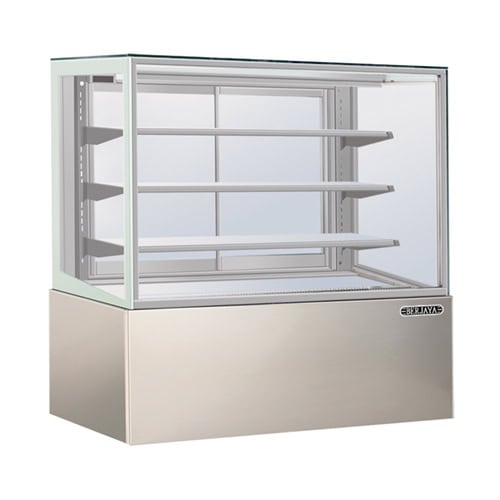

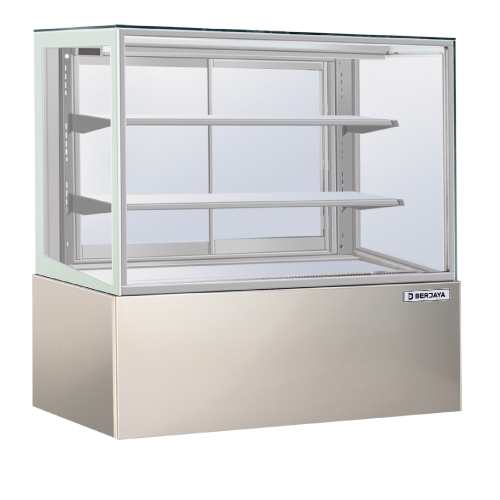

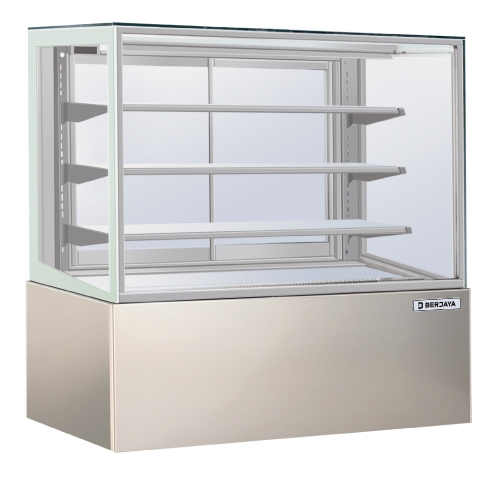

Rectangular : 2 Tier
Rectangular : 3 Tier |
HDW09SS-2
HDW09SS-3
RHDW09SS-2
RHDW09SS-3 |
HDW12SS-2
HDW12SS-3
RHDW12SS-2
RHDW12SS-3 |
HDW15SS-2
HDW15SS-3
RHDW15SS-2
RHDW15SS-3 |
HDW18SS-2
HDW18SS-3
RHDW18SS-2
RHDW18SS-3 |
HDW24SS-2
HDW24SS-3
RHDW24SS-2
RHDW24SS-3 |
Product Dimension
(L x W x H)(mm) |
900 x 700 x 1350 |
1200 x 700 x 1350 |
1500 x 700 x 1350 |
1800 x 700 x 1350 |
2400 x 700 x 1350 |
Packing Dimension
(L x W x H)(mm) |
950 x 770 x 1380 |
1250 x 770 x 1380 |
1550 x 770 x 1380 |
1850 x 770 x 1380 |
2450 x 770 x 1380 |
| Temperature Range |
40°C ~ 70°C |
40°C ~ 70°C |
40°C ~ 70°C |
40°C ~ 70°C |
40°C ~ 70°C |
| Normal Amps (A) |
7.00 |
7.18 |
7.23 |
13.26 |
14.65 |
| Total Load (W) |
1660 |
1680 |
1700 |
2897 |
3390 |
| Packing Volume (m3) |
1.00 |
1.33 |
1.65 |
1.97 |
2.60 |
