Juice Dispenser - Jet System (3 Bowls)
Juice Dispenser - Mix System (3 Bowls)

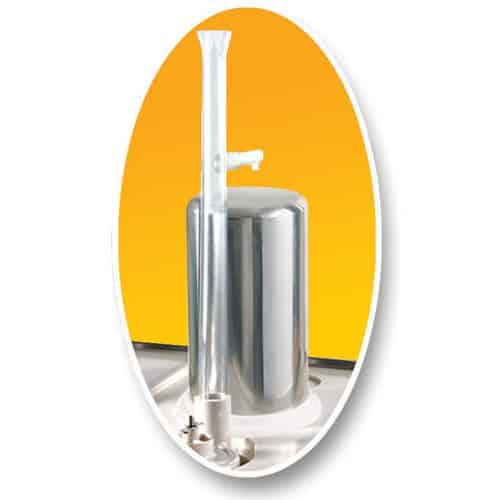

Jet System (Electromagnetic Pump)

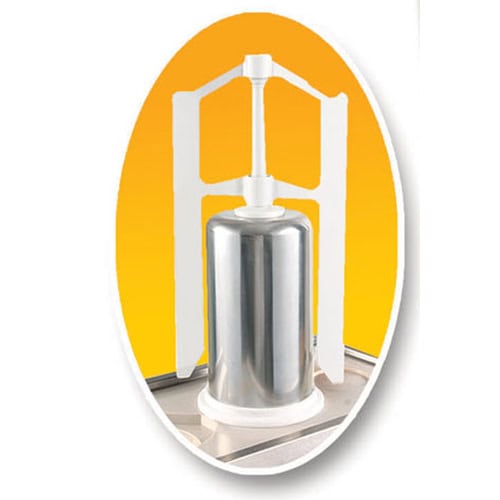

Mix System (Paddles)
Description
Juice Dispenser Jet System – By Electromagnetic pump : suitable for most beverages, such as syrup, water, premixed drinks from concentrate or powder.
| Model – 50Hz Model – 60Hz |
JD 118 Jet 25 JD 118 Jet 26 |
JD 218 Jet 25 JD 218 Jet 26 |
JD 318 Jet 25 JD 318 Jet 26 |
| # Bowls | 1 | 2 | 3 |
| Bowl Capacity (Litres) | 18.9 | 18.9 | 18.9 |
| Compressor (HP) (W) : 50Hz Compressor (HP) (W) : 60Hz |
1/6 (130) 1/4 (190) |
1/4 (190) 1/3 (250) |
1/3 (250) 3/8 (285) |
| Amps (A) | 3.2 | 3.8 | 4.5 |
| Product Dimension (L x W x H) (mm) |
210 x 450 x 710 | 410 x 450 x 710 | 610 x 450 x 710 |
| Packing Dimension (L x W x H) (mm) |
250 x 480 x 750 | 460 x 480 x 750 | 640 x 480 x 750 |
| Ecological Refrigerant |
R134a | R134a | R134a |
| Weight (kg) | 24 | 31 | 36 |
| Unit for 20ft Container | 324 | 180 | 108 |
Juice Dispenser Mix System – By paddles – suitable for iced tea, iced coffee, natural juices or foamed beverages.
| Model – 50Hz Model – 60Hz |
JD 118 Mix 25 JD 118 Mix 26 |
JD 218 Mix 25 JD 218 Mix 26 |
JD 318 Mix 25 JD 318 Mix 26 |
| # Bowls | 1 | 2 | 3 |
| Bowl Capacity (Litres) | 18.9 | 18.9 | 18.9 |
| Compressor (HP) (W) : 50Hz Compressor (HP) (W) : 60Hz |
1/6 (130) 1/4 (190) |
1/4 (190) 1/3 (250) |
1/3 (250) 3/8 (285) |
| Amps (A) | 2.8 | 3.5 | 4.0 |
| Product Dimension (L x W x H) (mm) |
210 x 450 x 710 | 410 x 450 x 710 | 610 x 450 x 710 |
| Packing Dimension (L x W x H) (mm) |
250 x 480 x 750 | 460 x 480 x 750 | 640 x 480 x 750 |
| Ecological Refrigerant |
R134a | R134a | R134a |
| Weight (kg) | 24 | 31 | 36 |
| Unit for 20ft Container | 324 | 180 | 108 |
Features
Features
- Two layer polycarbonate cover with 10mm air insulation. Minimize heat transfers and achieve high cooling efficiency.
- Separate bowl make cleaning easy and flavours change.
- Rounded blow corners make cleaning easy.
- Stainless Steel unbreakable handle.
- Removable stainless steel side panels for easy maintenance.
- Bowl max capacity 18.9L. Recommend the capacity level of 18L is the most comfortable volume to store, in order to avoid overspill during operation.
