SP 1
SP 2
SP 1HP
SP 2-HP

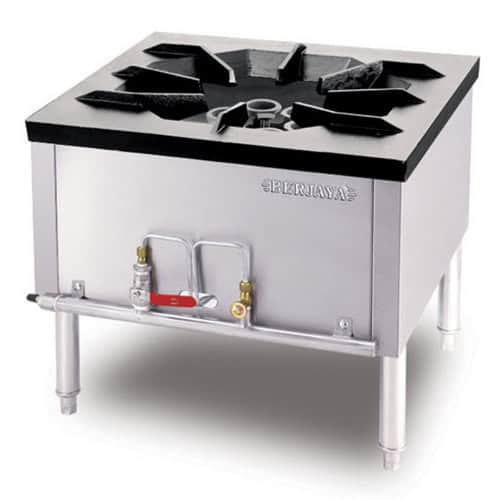

SP 1-HT

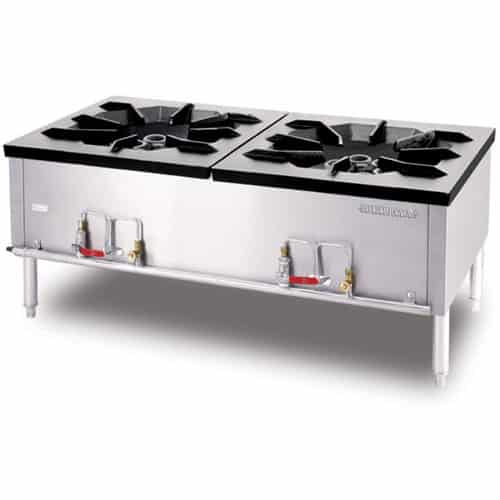

SP 2-HT

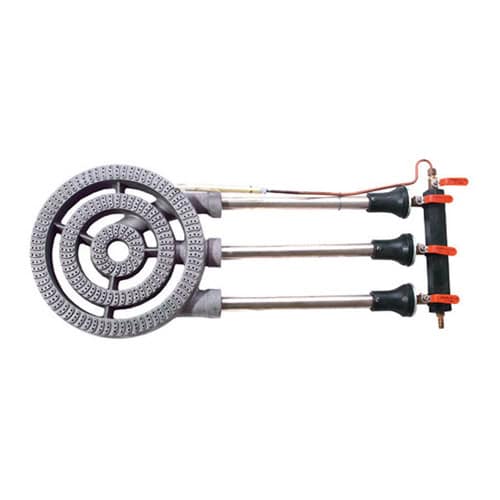

Ring Burner

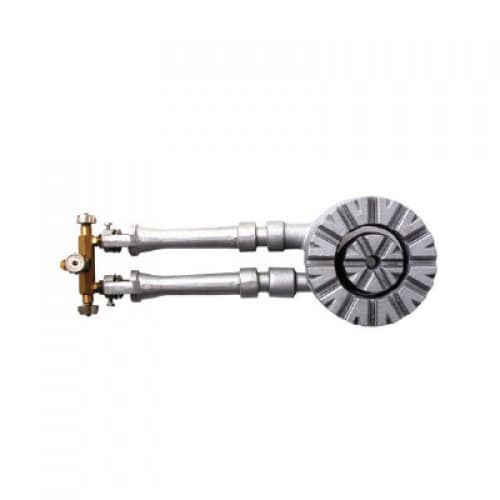

Pineapple Burner
Trumpet Burner
Description
| Model | SP 1 | SP 2 | SP 1-HP | SP 2-HP | SP 1-HT | SP 2-HT |
| Product Dimension (mm) | 600 x 600 x 520 | 1200 x 600 x 520 | 600 x 600 x 520 | 1200 x 600 x 520 | 600 x 600 x 520 | 1200 x 600 x 520 |
| Packing Dimension (mm) | 655 x 750 x 350 | 1220 x 750 x 350 | 655 x 750 x 350 | 1220 x 750 x 350 | 655 x 750 x 350 | 1220 x 750 x 350 |
| Weight (kg) | 40 | 79 | 37 | 71 | 35 | 69 |
| Gas Consumption Btu/Hr (MJ/Hr) | 56,000 (59) | 112,000 (118) | 57,000 (60) | 114,000 (120.8) | 96,000 (101.7) | 192,000 (203) |
| Gas Pressure | Low | Low | High | High | High | High |
| Burner Type | Ring | Ring | Pineapple | Pineapple | Trumpet | Trumpet |
Disclaimer:
- Specifications and design are subject to change without prior notice.
- All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
- Product photos are for illustration purposes only and may differ from the actual product.
Features
Features
- Stainless steel body.
- Cast iron top grate
- Precision brass gas cork
- 4 adjustable gas
- Drip pan is easily removable for cleaning (except HT model)
- For ring burner, each ring with independent control (model SP1, SP2, SP1-HP, SP2-HP)
- Real gas connection
