EG3500HR-17
EG5250HR-17

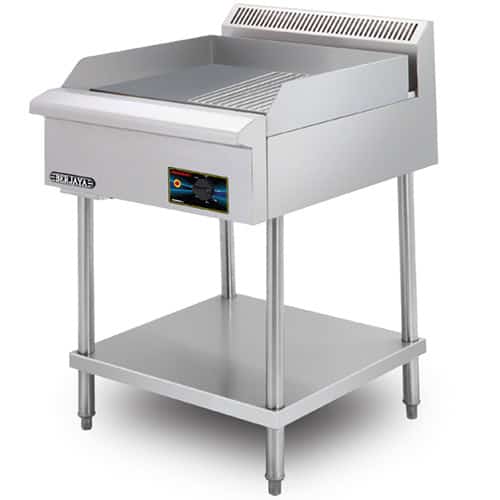

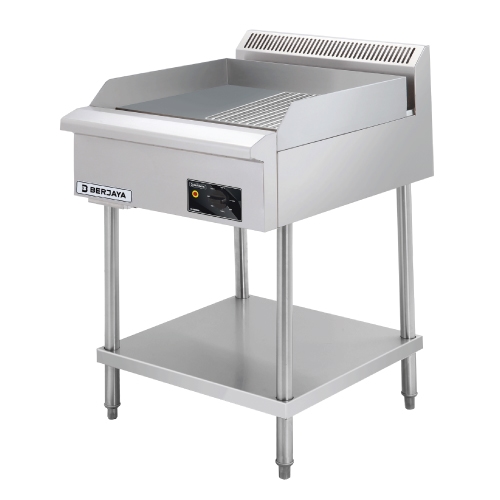

EG3500HRFS-17

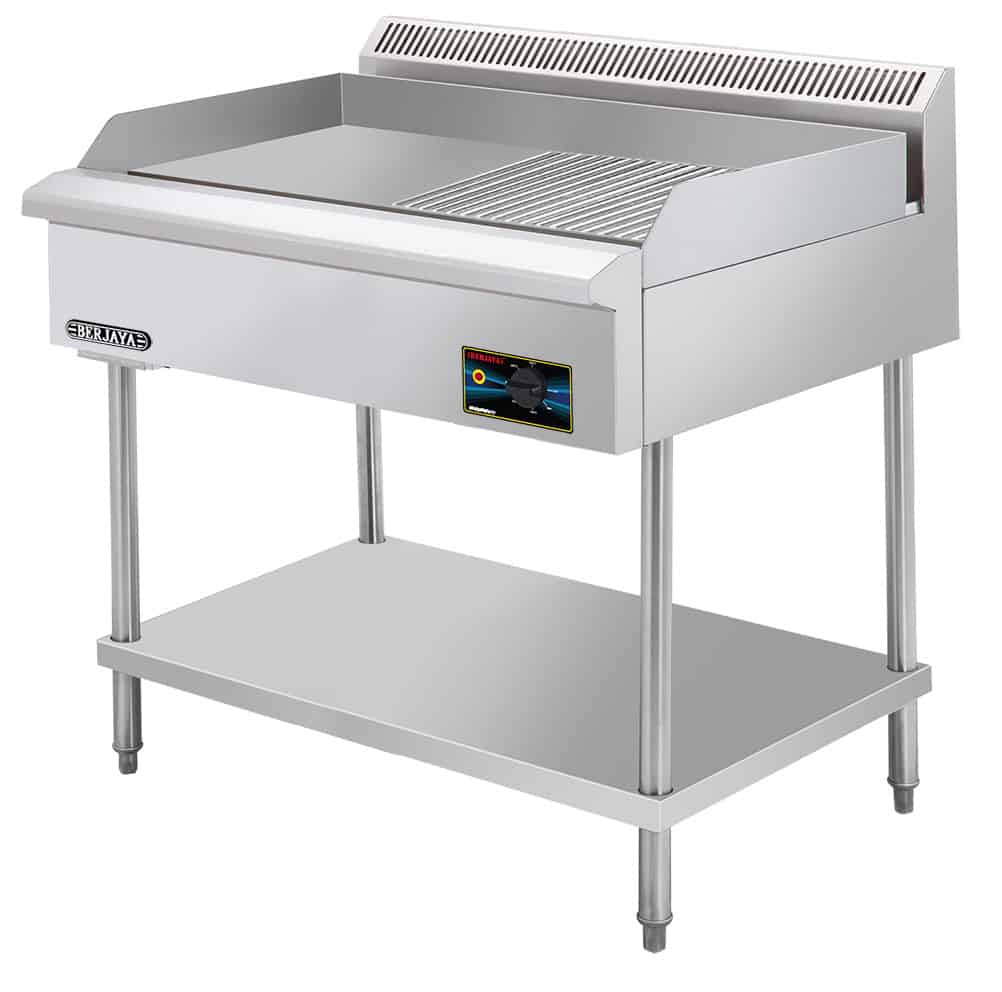

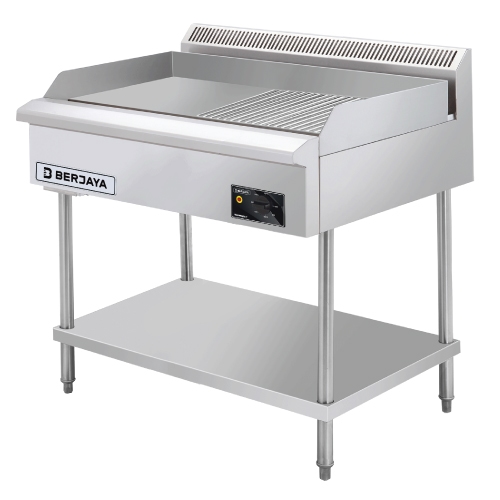

EG5250HRFS-17
Description
| Model: Table Top Model: Free Standing | EG3500HR-17 EG3500HRFS-17 | EG5250HR-17 EG5250HRFS-17 |
| Product Dimension (mm) – Table Top – Free Standing | – 600 x 790 x 455 600 x 790 x 1010 | – 900 x 790 x 455 900 x 790 x 1010 |
| Hot Plate Size (mm) | 597 x 457 x 12 | 897 x 457 x 12 |
| Packing Dimension (mm) | 677 x 845 x 445 | 955 x 845 x 445 |
| Weight (kg) – Table Top – Free Standing | – 43 48 | – 62 69 |
| Rated Voltage (V) | 220 ~ 240 | 380 ~ 415 |
| Frequency (Hz) | 50 / 60 | 50 / 60 |
| Rated Wattage (W) | 3500 | 5250 |
| Phase | 1 | 3 |
| Packing Volume (m3) | 0.26 | 0.36 |
Disclaimer:
- Specifications and design are subject to change without prior notice.
- All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
- Product photos are for illustration purposes only and may differ from the actual product.
Features
Features
- Stainless Steel body
- Temperature range 50°C to 300°C.
- 1, 2 to 3 tubular heaters of 1750 watt each.
- 12mm thick, flat polished steel griddle plate.
- Removable stainless steel grease drip pan with drain holes.
