CB3B-17
CB5B-17

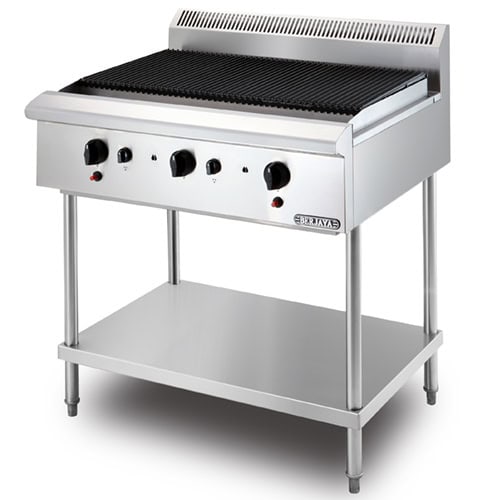

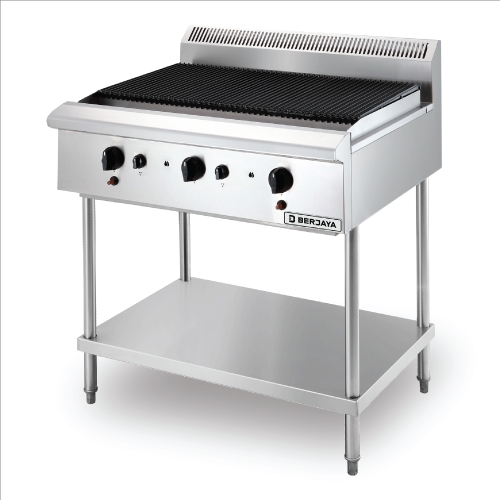

CB3BFS-17

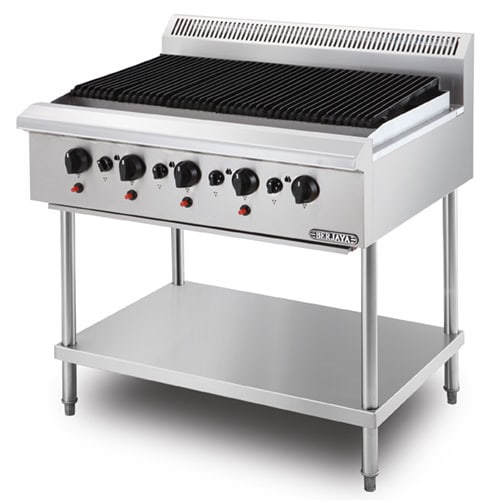

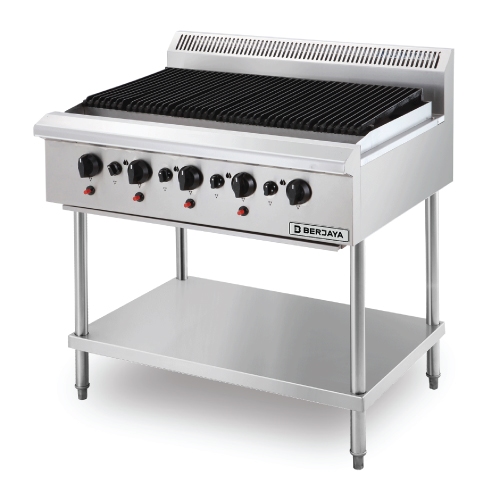

CB5BFS-17

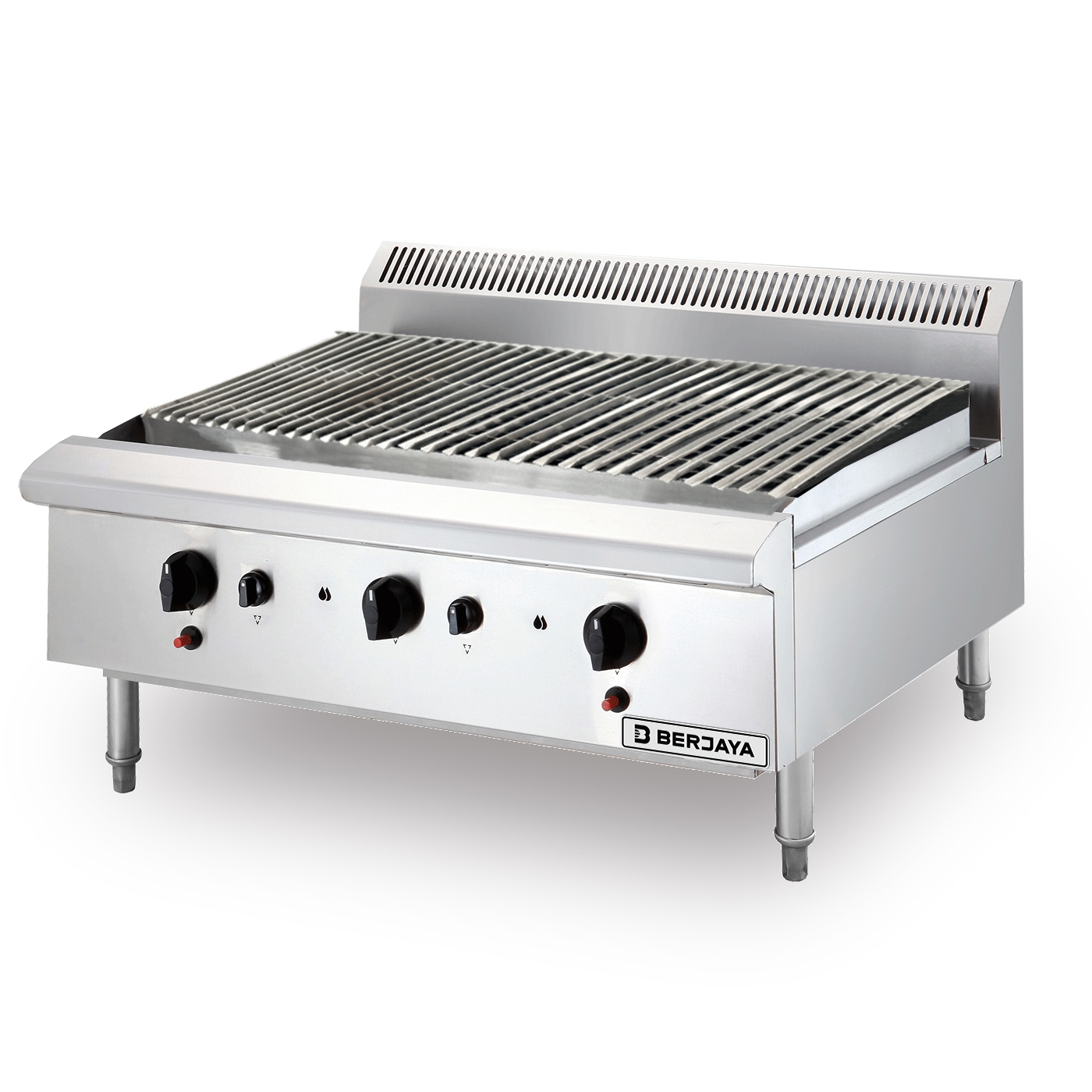

CB3B-SS-17

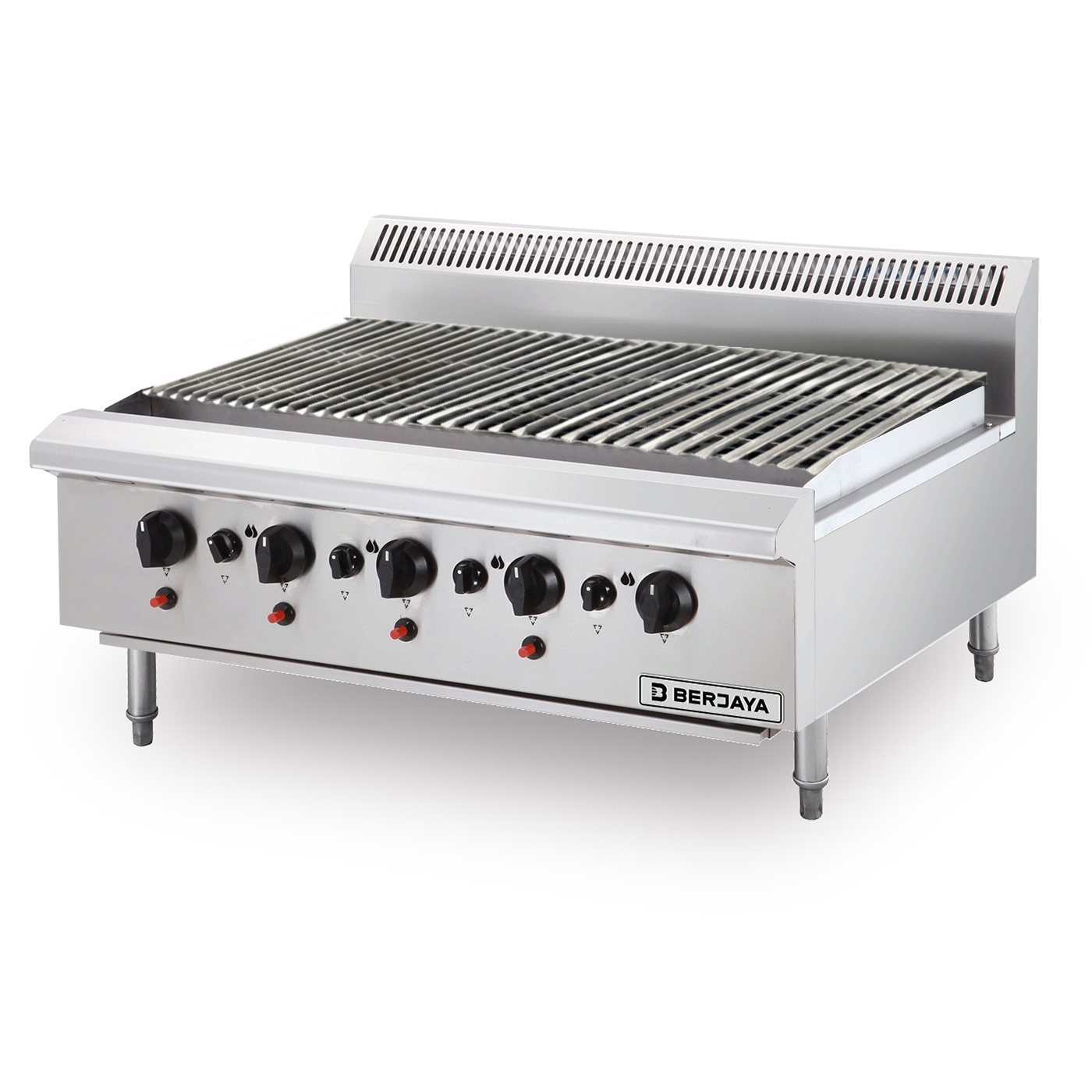

CB5B-SS-17

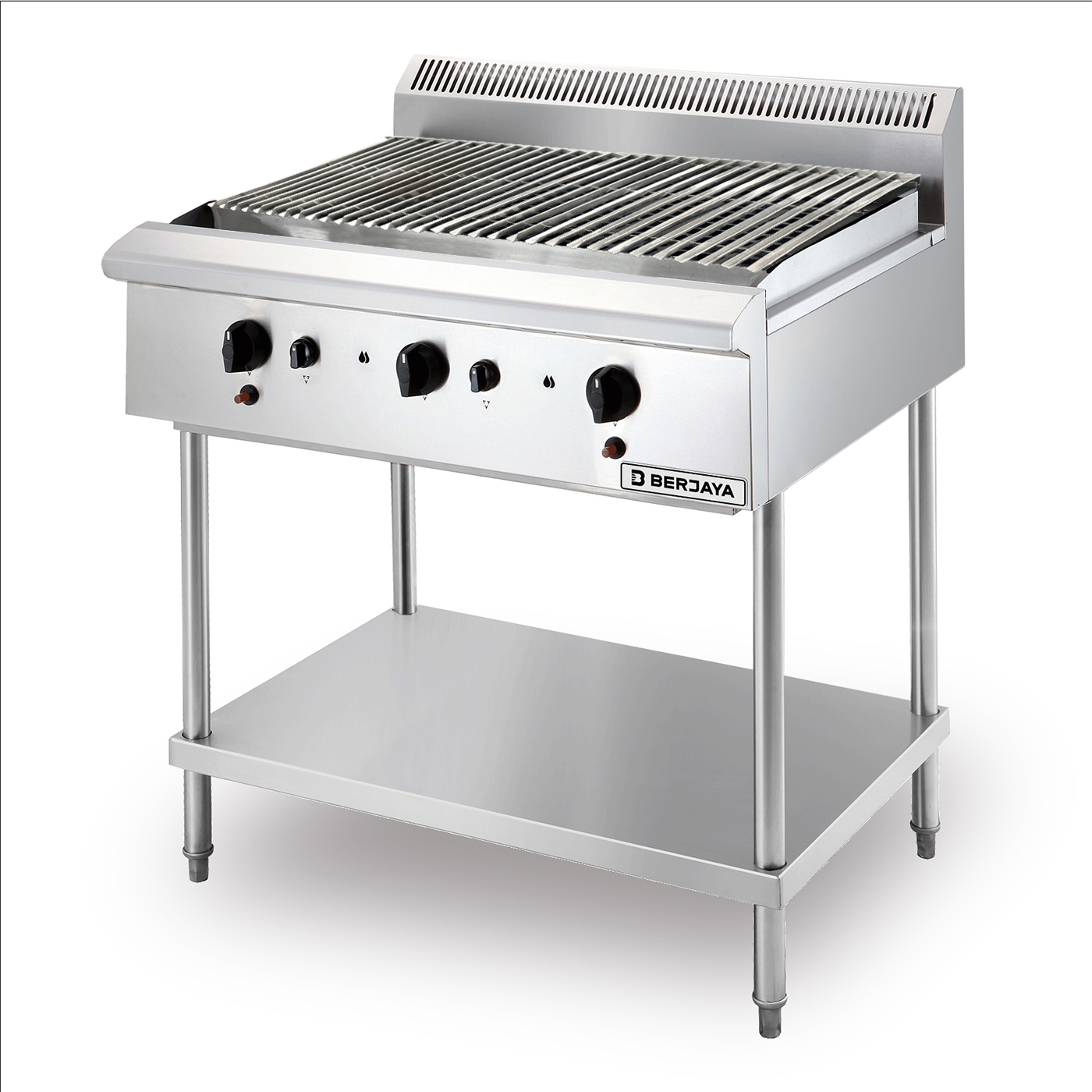

CB3B-SS-FS-17

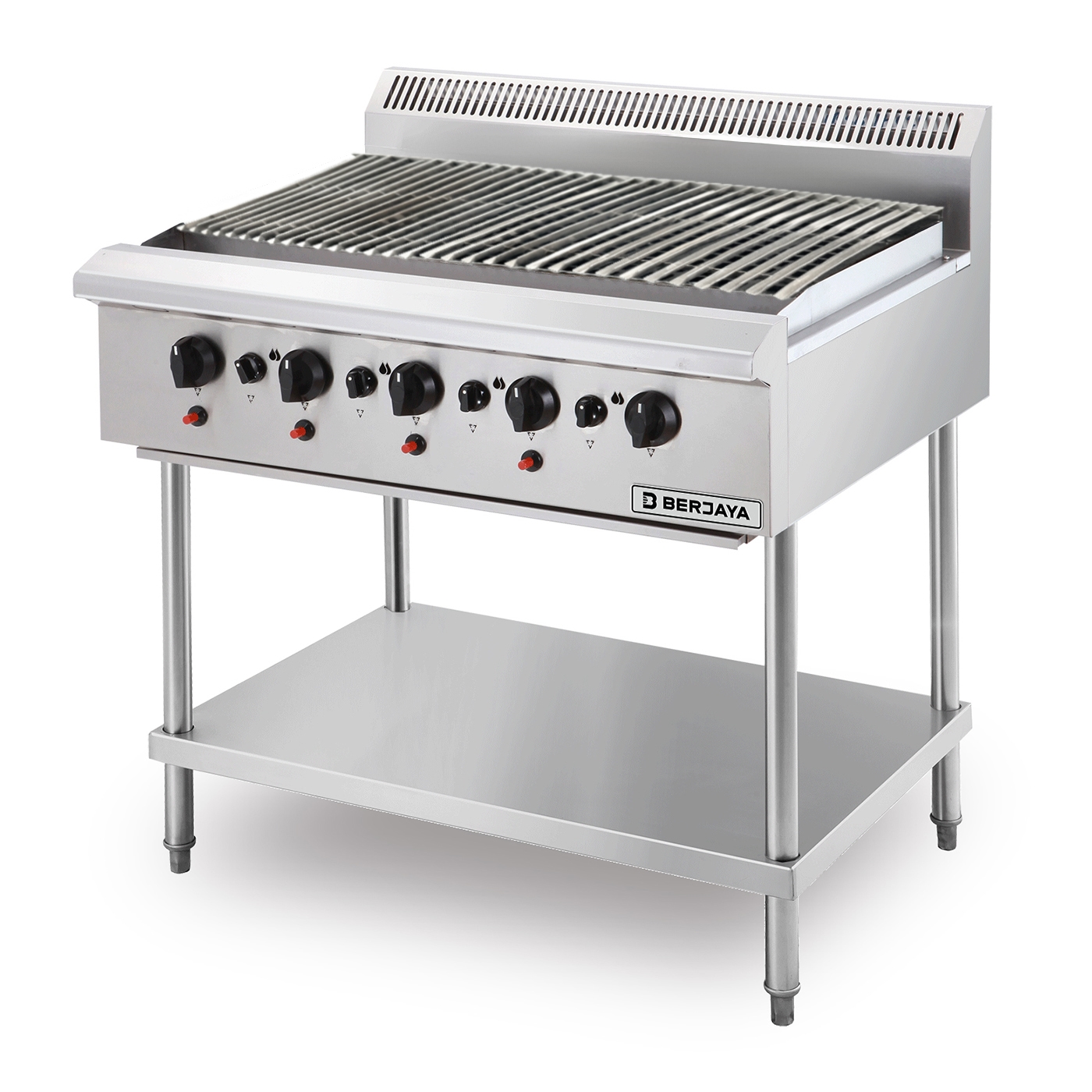

CB5B-SS-FS-17
Description
New 700 Series
| Model: Cast Iron – Table Top Cash Iron – Free Standing Stainless Steel Top Fin – Table Top Stainless Steel Top Fin – Free Stainding | CB3BTT-700 CB3BFS-700 CB3BTT-700-S CB3BFS-700-S | CB5BTT-700 CB5BFS-700 CB5BTT-700-S CB5BFS-700-S |
| Number Of Burner | 3 | 5 |
| Gas Consumption Btu/Hr (MJ/Hr) | 45,000 | 75,000 |
| Product Dimension (L X W X H) (mm) – Table Top – Free Standing | – 600 x 700 x 385 600 x 700 x 900 | – 900 x 700 x 385 900 x 700 x 900 |
| Packing Dimension (L X W X H) (mm) | 675 x 755 x 375 | 955 x 755 x 375 |
| Model: Cast Iron – Table Top Cast Iron – Free Standing Stainless Steel Top Fin – Table Top Stainless Steel Top Fin – Free Standing | CB3B-17 CB3BFS-17 CB3B-SS-17 CB3B-SS-FS-17 | CB5B-17 CB5BFS-17 CB5B-SS-17 CB5B-SS-FS-17 |
| Number Of Burner | 3 | 5 |
| Gas Consumption Btu/Hr (MJ/Hr) | 45,000 | 75,000 |
| Product Dimension (L X W X H) (mm) – Table Top – Free Standing | – 600 x 790 x 455 600 x 790 x 1010 | – 900 x 790 x 455 900 x 790 x 1010 |
| Packing Dimension (L X W X H) (mm) | 677 x 845 x 445 | 955 x 845 x 445 |
| Weight (kg) – Table Top – Free Standing | – 71 76 | – 107 114 |
| Packing Volume (m3) | 0.26 | 0.36 |
Features
Features
- Full stainless steel constructed body and easy to keep clean.
- Equipped with manual control, continuous burning pilot.
- Rear gas connection.
- Automatic piezo ignitor.
- Standby manual lighting holes.
- The airated pilots are attached to each.
