BS DU2F2C-Z
BS DU4F2C-Z
BS DU4C2F-Z

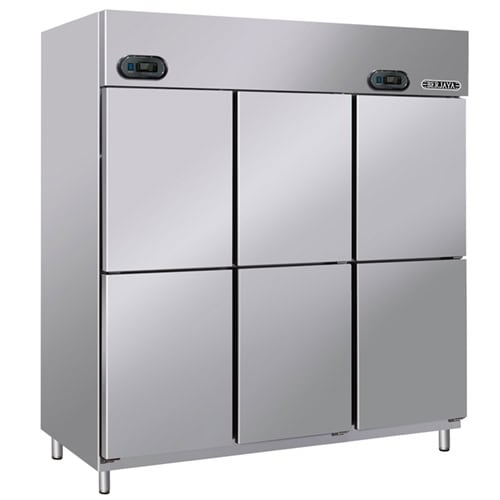

Dual Upright Chiller & Freezer
A dual-zone upright cabinet combining chiller and freezer storage in one unit, available as a 4-door model or in two 6-door configurations with different chiller-to-freezer door splits. An insulated partition keeps the two zones at their separate temperatures without cross-interference.
The Berjaya Dual Upright Chiller & Freezer range puts chilled and frozen storage in one cabinet, built for kitchens that need both zones but don’t have room for two separate units. Each compartment is insulated from its neighbour so the chiller side holds +2 to +8 degrees and the freezer side holds -18 to -12 degrees without one zone dragging on the other.
Dual Upright Chiller & Freezer specifications
| Model R290 Refrigerant R134a (C) / R404a (F) Refrigerant | 4 Door U2F2C-29-Z BS DU2F2C-Z | 6 Door U4C2F-29-Z BS DU4C2F-Z | 6 Door U4F2C-29-Z BS DU4F2C-Z | |
| Chiller / Freezer | 2 Door Chiller & 2 Door Freezer | 4 Door Chiller & 2 Door Freezer | 2 Door Chiller & 4 Door Freezer | |
| Temperature °C (Celsius) | Chiller | +2 to +8 | +2 to +8 | +2 to +8 |
| Freezer | -18 to -12 | -18 to -12 | -18 to -12 | |
| External Dimension (mm) | 1300 x 770 x 2060 | 1950 x 770 x 2060 | 1950 x 770 x 2060 | |
| Gross Volume (Litres) | Chiller | 540 | 1041 | 540 |
| Freezer | 473 | 540 | 1041 | |
| Energy Consumption (kwh/Day) – R134a / R404a | Chiller | 4.2 | 5.76 | 4.2 |
| Freezer | 10 | 10.5 | 15.2 | |
| Voltage/Frequency (V/ Hz) | 230v / 1 / 50Hz | 230v / 1 / 50Hz | 230v / 1 / 50Hz | |
| 220v / 1 / 60Hz | 220v / 1 / 60Hz | 220v / 1 / 60Hz | ||
| Cooling Capacity (W) – R134a / R404a | Chiller | 522 | 792 | 581 / 522 |
| Freezer | 680 | 680 | 876 | |
| Wattage (W) – R134a / R404a | Chiller | 352 – 389 | 480 – 530 | 353 – 390 |
| Freezer | 567 – 627 | 581 – 642 | 713 – 788 | |
| Ampere (A) – R134a / R404a | Chiller | 2.3 – 2.6 | 3.1 – 3.4 | 2.4 – 2.6 |
| Freezer | 3.6 – 4.0 | 3.8 – 4.2 | 3.3 – 3.7 | |
| Defrost System | Forced Air Circulation / Electric Heater | Forced Air Circulation / Electric Heater | Forced Air Circulation / Electric Heater | |
| PVC Coated Shelving | 8 | 12 | 12 | |
| Weight (kg) | 182 | 250 | 266 | |
| Unit For 20ft Container | 11 | 7 | 7 | |
| Unit For 40ft Container | 23 | 15 | 15 | |
Frequently asked questions
What is the difference between the three dual upright chiller and freezer models?
The three models split their doors differently: the 4-door unit gives 2 doors of chiller and 2 of freezer, while the two 6-door units offer either 4 doors of chiller with 2 of freezer, or 2 doors of chiller with 4 of freezer. This lets a kitchen pick the chiller-to-freezer balance that matches its actual stock mix rather than running two separate cabinets.
What temperature range does the chiller and freezer side each hold?
The chiller compartment holds +2 to +8 degrees Celsius and the freezer compartment holds -18 to -12 degrees Celsius, the same range across all three models in the lineup.
Is a freezer that holds -18 degrees cold enough for commercial frozen storage?
Yes, for food that arrives already frozen. Holding stock at -18 degrees or below is the accepted commercial standard, though freezing fresh product down quickly is a blast freezer’s job, not a storage freezer’s.
How does the door design help maintain temperature and energy efficiency?
The dual chiller and freezer range uses solid doors that hold the internal temperature, with a counter-balanced weight system that gives the self-closing doors a smooth, positive closure to minimise cold air loss.
What defrost system do these units use?
An automatic electric heater defrost system working with forced air circulation, which keeps energy consumption down and removes the need for manual defrosting on either the chiller or freezer side.
What power supply does the dual chiller and freezer range need?
The range runs on 230V single-phase 50Hz or 220V single-phase 60Hz power, standard for commercial kitchen electrical setups in Malaysia, so no special supply is needed.
Remarks:
* Option : CW – Castor Wheel / BF – Bullet Feet
* (C) – Chiller; (F) – Freezer
Disclaimer:
- Specifications and design are subject to change without prior notice.
- All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
- Product photos are for illustration purposes only and may differ from the actual product.
Features
These features explain how the Dual Upright Chiller & Freezer range keeps two temperature zones stable in one cabinet without pushing up running costs.
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Insulated partition between left freezer and right chiller compartment ensures temperature integrity of each product zone.
- Refrigeration system protected from corrosion by urethane-treated evaporator coil.
- Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.
- Environmentally friendly refrigerant
