Rectangular Drawer Showcase (With Window)
Rectangular Drawer Showcase (Without Window)

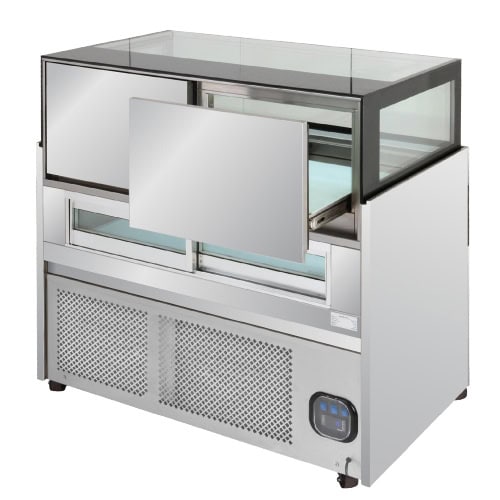

Rectangular Drawer Showcase (Back View)
Rectangular Drawer Showcase
Description
| Model: Macaron / Pastry – R290 Refrigerant – R134a Refrigerant (New Code) – R134a Refrigerant (Old Code) | With Window RDS12-M-W-29 RDS12-M-W RDS-M-12W | With Window RDS15-M-W-29 RDS15-M-W RDS-M-15W | Without Window RDS12-M-29 RDS12-M RDS-M-12 | Without Window RDS15-M-29 RDS15-M RDS-M-15 |
| Temperature °C (Celsius) | +2 to +8 | +2 to +8 | +2 to +8 | +2 to +8 |
| External Dimension (mm) | 1200 x 700 x 1200 | 1500 x 700 x 1200 | 1200 x 700 x 1200 | 1500 x 700 x 1200 |
| Gross Volume (L) | Top 157 Middle 132 | Top 195 Middle 163 | Top 157 Middle 159 | Top 195 Middle 203 |
| Voltage/ Frequency (V/Hz) | 230 – 240V / 50Hz | 230 – 240V / 50Hz | 230 – 240V / 50Hz | 230 – 240V / 50Hz |
| Cooling Capacity – R134a Refrigerant | 1784 | 1788 | 1784 | 1788 |
| Wattage (W) – R134a Refrigerant | 1092.5 – 1207.5 | 1206 – 1333 | 1092.5 – 1207.5 | 1206 – 1333 |
| Ampere (A) – R134a Refrigerant | 6.0 – 6.6 | 6.9 – 7.7 | 6.0 – 6.6 | 6.9 – 7.7 |
| System | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation |
| Weight (kg) | 212 | 250 | 212 | 250 |
| Unit For 20ft Container | 11 | 10 | 11 | 10 |
| Unit For 40ft Container | 23 | 21 | 23 | 21 |
| Model: Chocolate – R290 Refrigerant – R134a Refrigerant (New Code) – R134a Refrigerant (Old Code) | With Window RDS12-C-W-29 RDS12-C-W RDS-C-12W | With Window RDS15-C-W-29 RDS15-C-W RDS-C-15W | Without Window RDS12-C-29 RDS12-C RDS-C-12 | Without Window RDS15-C-29 RDS15-C RDS-C-15 |
| Gross Volume (L) | Top 157 Middle 132 | Top 195 Middle 163 | Top 157 Middle 159 | Top 195 Middle 203 |
| Voltage/ Frequency (V/Hz) | 230 – 240V / 50Hz | 230 – 240V / 50Hz | 230 – 240V / 50Hz | 230 – 240V / 50Hz |
Disclaimer:
- Specifications and design are subject to change without prior notice.
- All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
- Product photos are for illustration purposes only and may differ from the actual product.
Features
Features
- Suitable for cake and pastry. An ideal showcase, which creates impulse sales.
- Display compartment is constructed with double layer hardened glass.
- 4 sides clear glass with front rectangular glass and internal lighting for excellent display.
- Oversized coil and low velocity fan system maintain high humidity and low temperature and product freshness.
- LED Light Display
- Environmental friendly refrigerant
