2DUF-IV-Z
Berjaya Inverter Upright Freezer
4DUF-IV-Z

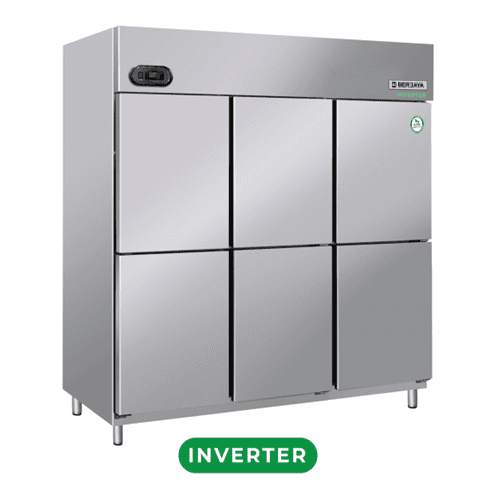

6DUF-IV-Z
Inverter Upright Freezer
A commercial upright freezer range built for -18 to -12 degree frozen storage, available in 2, 4 and 6 door sizes with an inverter compressor for lower running costs. Stainless steel construction and R290 refrigerant come standard across every size.
Berjaya Inverter Upright Freezer range gives Malaysian kitchens frozen storage that holds -18 to -12 degrees Celsius while cutting the electricity bill against a standard compressor. The range runs from the 2-door through the 4-door to the 6-door, with gross volume rising as door count increases so you can match capacity to storage space rather than overbuying. All three use an inverter compressor with R290 refrigerant, a solid self-closing door and stainless steel construction, with full specifications for each model set out in the table below.
Inverter Upright Freezer specifications
| MODEL | 2 Door 2DUF-IV-Z | 4 Door 4DUF-IV-Z | 6 Door 6DUF-IV-Z |
| Temperature °C (Celsius) | -18 to -12 | -18 to -12 | -18 to -12 |
| External Dimension (mm) | 650 x 770 x 2060 | 1300 x 770 x 2060 | 1950 x 770 x 2060 |
| Gross Volume (Litres) | 470 | 1042 | 1554 |
| Energy Consumption (kWh / Day)* | 3.8 | 6.0 | 8.7 |
| Energy Savings (kWh / Day)* | 8.4 | 9.4 | 13.6 |
| Energy Savings Up to (% / Year)* | 68.85 | 61.04 | 60.99 |
| Voltage/ Phase (V/ Ph) | 220 – 230V/ 1 | 220 – 230V/ 1 | 220 – 230V/ 1 |
| Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 |
| Cooling Capacity (W) | 445 | 939 | 939 |
| Ampere (A) | 1.9 | 3.56 | 3.78 |
| Wattage (W) | 245.1 | 457.4 | 488 |
| Refrigerant | R290 | R290 | R290 |
| Defrost System | Electric Heater | Electric Heater | Electric Heater |
| PVC Coated Shelving | 4 | 8 | 12 |
| Weight (kg) | 91 | 145 | 199 |
Frequently asked questions
Q1. What is R290 refrigerant and why does it matter?
R290 is a natural hydrocarbon refrigerant with a very low global warming potential compared with older synthetic gases. The Inverter Upright Freezer range uses R290 throughout, keeping the equipment ahead of refrigerant phase-down rules in Malaysia.
Q2. What does the inverter compressor actually change day to day?
It varies its speed with the load instead of switching on and off at full power. That means a lower starting current, a quieter kitchen, steadier holding temperatures and lower running costs than a fixed-speed equivalent.
Q3: Why does the insulation thickness matter?
Thicker, high-density foam slows heat transfer from outside to inside, so the unit maintains a stable internal temperature with less strain on the cooling system.
Q4. What defrost system do these freezers use?
The Inverter Upright Freezer range uses an automatic electric heater defrost system, which keeps energy consumption down and the defrost cycle as short as possible with no manual defrosting needed.
Remarks:
* Energy Savings compared with Standard Model
* In-House Laboratory Testing Report
Disclaimer:
- Specifications and design are subject to change without prior notice.
- All product dimensions (L × W × H) are subject to a manufacturing tolerance of ±5 mm.
- Product photos are for illustration purposes only and may differ from the actual product.
Features
The features below explain how the Inverter Upright Freezer range holds its temperature steadily while keeping running costs and noise down.
- Inverter Compressor, low starting current, high energy efficiency and low acoustic level with variable-speed technology.
- R290 Environmental friendly refrigerant. Faster heat transfer and lower compressor load deliver significant daily electricity savings.
- Insulation: 5.5–6 cm high-density foam insulation ensures stable, even cooling even in hot climates.
- Solid Door maintain the desired temperature inside the refrigerator, contributing to better energy efficiency.
- Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.
- Durable stainless steel exterior and interior, Full-length door handle.
- Automatic defrost system saves energy consumption and provide the shortest possible defrost cycle.
- Ventilated System assisted with fan to ensure homogeneous coolness in the storage space.
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
Accreditation Statement:
Our Upright and Counter Range are registered with the Singapore National Environment Agency (NEA) under the Mandatory Energy Labelling Scheme (MELS) and bear the official Energy Label for commercial storage refrigerators in Singapore.Additional models in this range are currently undergoing third-party verification and registration to meet the forthcoming Minimum Energy Performance Standards (MEPS)
