BJY-IM191 + IB-300
BJY-IM455 + IB-375

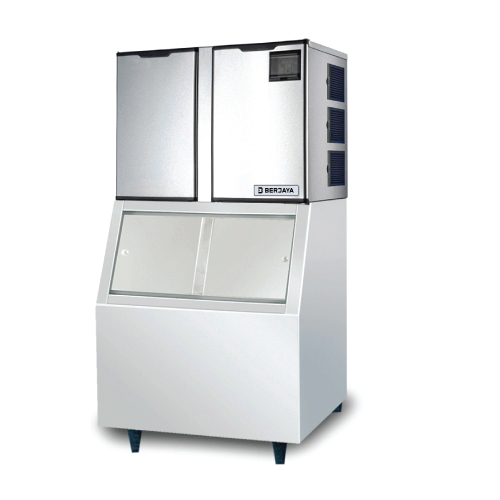

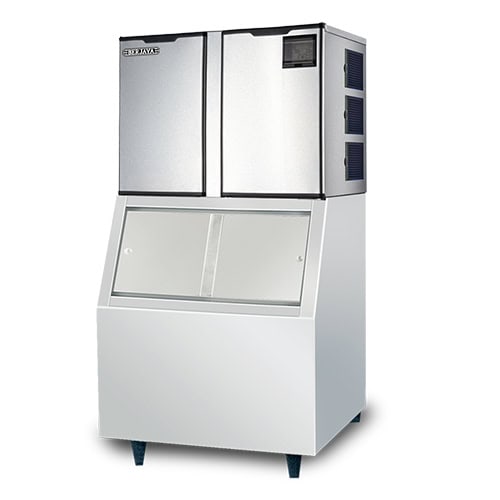

BJY-IM682 + IB-775
Ice Maker / Cube Ice Machine
Description
| Machine – Dice Ice 22mm Machine – Dice Ice 28mm Ice Bin | BJY-IM191 BJY-IM191LD IB-300 | BJY-IM455 BJY-IM455LD IB-375 | BJY-IM682 – IB-775 |
| Dice Ice Dimension (mm) BJY-IM191 , BJY-IM455 , BJY-IM682 BJY-IM191LD , BJY-IM455LD | – 22 x 22 x 22 28 x 28 x 22 | – 22 x 22 x 22 28 x 28 x 22 | – 22 x 22 x 22 – |
| Water Consumption (24hr) for air cooled model at ambient 25°c | 286kg / 24hr | 680kg / 24hr | 1023kg / 24hr |
| Output (lb/24hr) | (420 lb or 191kg) / 24hr | (1000 lb or 455kg) / 24hr | (1500 lb or 682kg) / 24hr |
| Bin Capacity (lb) | 275 lb (or 125kg) | 375 lb (or 170kg) | 775 lb (or 350kg) |
| Condenser Unit | Air Cooling | Air Cooling | Air Cooling |
| Voltage / Phase (V/Ph) | 220 – 240 / 1 | 220 – 240 / 1 | 220 – 240 / 1 |
| Frequency (Hz) | 50 | 50 | 50 |
| Power (W) | 920 | 2400 | 3400 |
| Refrigerant | R404A / 420g | R404A / 1050g | R404A / 1500g |
| Product Dimension (mm) – Machine – Ice Bin | 560 x 810 x 1558 560 x 618 x 568 560 x 810 x 990 | 795 x 810 x 1895 795 x 595 x 745 780 x 810 x 1150 | 1260 x 810 x 1825 1260 x 630 x 675 1230 x 810 x 1150 |
| Packing Dimension (mm) – Machine – Ice Bin | 655 x 750 x 620 565 x 815 x 995 | 845 x 750 x 805 785 x 815 x 1155 | 1360 x 765 x 725 1235 x 815 x 1155 |
| Net Weight (kg) : Machine / Â Ice Bin | 57 / 24 | 85 / 34 | 100 / 42 |
| Gross Weight (kg) : Machine / Ice Bin | 61 / 25 | 90 / 35 | 120 / 43 |
Features
Features
- Dice ice machine 22mm or 28mm
- Designed for easy operation and attractive appearance
- Durability to last in the busiest commercial environments.
- Evaporator is made of copper nickel plated for more energy efficiency and anti corrosion.
- Insulated Ice storage bin and door to minimise condensation.
- Four adjustable legs accommodate uneven floors or to raise or lower its working height
- High quality compressor.
- Ample Ice supplies for bars, restaurants, hotels, food chains & etc.
