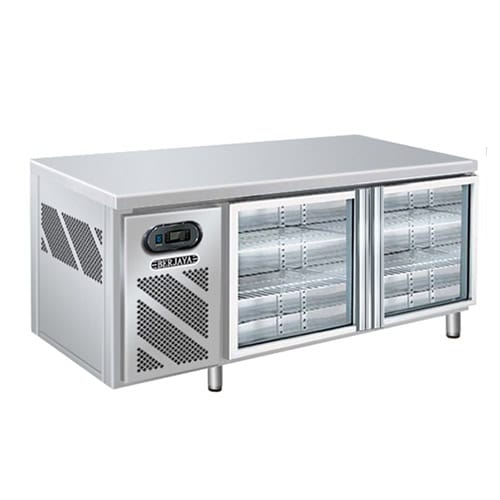

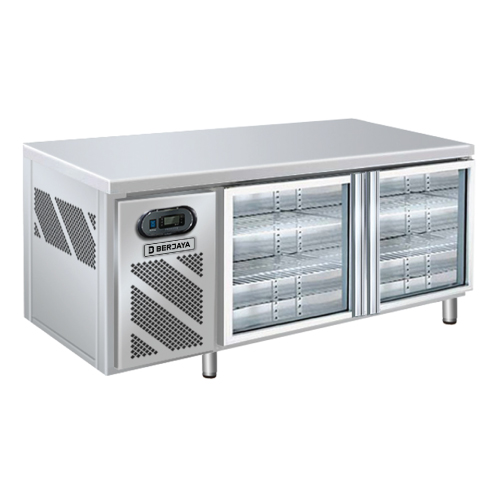

Refrigerated Barline (2 Door)
Refrigerated Barline - Image 2

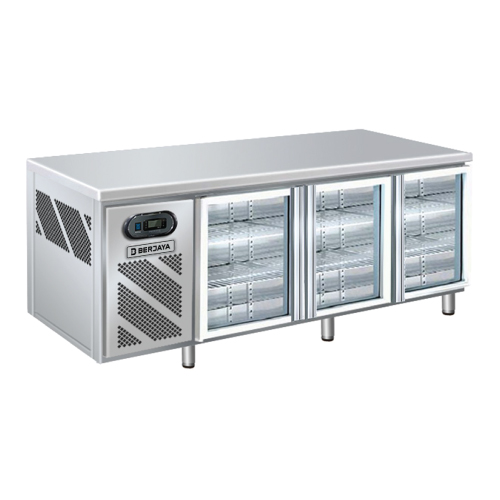

Refrigerated Barline (3 Door)
Refrigerated Barline - Image 3
Refrigerated Barline (4 Door)
Click to enlarge
Refrigerated Barline
Refrigerated Barline - Image 2
Refrigerated Barline - Image 3
Cube Ice Machine (Under Counter)
Cube Ice Machine (Under Counter)
Back to products
2 / 3 Deck Drawer Counter Chiller
2 / 3 Deck Drawer Counter Chiller

Refrigerated Barline

SKU: N/A Categories: ,
Description
Model:
600 Series		 2 Door
B2D/C4/600-SM		 2 Door
B2D/C5/600-SM		 2 Door
B2D/C6/600-SM		 3 Door
B3D/C7/600-SM		 4 Door
B4D/C8/600-SM
Temperature°C (celsius) +1 to +6 +1 to +6 +1 to +6 +1 to +6 +1 to +6
External Dimension (mm) 1200 x (600 + 20) x 840 1500 x (600 + 20) x 840 1800 x (600 + 20) x 840 2100 x (600 + 20) x 840 2400 x (600 + 20) x 840
Gross Volume (Litres) 182 255 329 405 479
Voltage/Frequency (V/ Hz) 230v / 1 / 50Hz 230v / 1 / 50Hz 230v / 1 / 50Hz 230v / 1 / 50Hz 230v / 1 / 50Hz
220v / 1 / 60Hz 220v / 1 / 60Hz 220v / 1 / 60Hz 220v / 1 / 60Hz 220v / 1 / 60Hz
Cooling Capacity (W) 639 750 750 977 1316
Wattage (W) 326 – 361 440 – 486 402 – 444 511 – 565 558 – 616
Ampere(A) 1.90 – 2.10 2.60 – 2.9 2.40 – 2.6 3.1 – 3.4 3.29 – 3.64
Refrigerant R134a R134a R134a R134a R134a
Defrost System Forced Air Circulation Forced Air Circulation Forced Air Circulation Forced Air Circulation Forced Air Circulation
PVC Coated Shelving 4 4 4 6 8
Weight (kg) 77 80.7 89.8 110.3 125.6
Unit for 20ft Container 24 22 16 16 8
Unit for 40ft Container 50 46 32 32 16
Model:
700 Series		 2 Door
B2D/C4/7-SM		 2 Door
B2D/C5/7-SM		 2 Door
B2D/C6/7-SM		 3 Door
B3D/C7/7-SM		 4 Door
B4D/C8/7-SM
Temperature°C (celsius) +1 to +6 +1 to +6 +1 to +6 +1 to +6 +1 to +6
External Dimension (mm) 1200 x (760 + 20) x 840 1500 x (760 + 20) x 840 1800 x (760 + 20) x 840 2100 x (760 + 20) x 840 2400 x (760 + 20) x 840
Gross Volume (Litres) 263 366 472 576 681
Voltage/Frequency (V/ Hz) 230v / 1 / 50Hz 230v / 1 / 50Hz 230v / 1 / 50Hz 230v / 1 / 50Hz 230v / 1 / 50Hz
220v / 1 / 60Hz 220v / 1 / 60Hz 220v / 1 / 60Hz 220v / 1 / 60Hz 220v / 1 / 60Hz
Cooling Capacity (W) 639 750 750 977 1316
Wattage (W) 333 – 353 411 – 454 474 – 524 451 – 499 570 – 604
Ampere(A) 1.94 – 2.06 2.40 – 2.70 2.70 – 3.0 2.90 – 3.20 3.37 – 3.57
Refrigerant R134a R134a R134a R134a R134a
Defrost System Forced Air Circulation Forced Air Circulation Forced Air Circulation Forced Air Circulation Forced Air Circulation
PVC Coated Shelving 4 4 4 6 8
Weight (kg) 97 107 117 143 158
Unit for 20ft Container 22 22 14 14 8
Unit for 40ft Container 46 42 28 28 16
Features

Features

  • Special design for beverage storage and display
  • Brilliant illumination of products creates impulse sales.
  • High-density Cyclo-isopentane Polyurethane insulated body saves energy.
  • Refrigeration system protected from corrosion by urethane-treated evaporator coil.
  • Effective counter – balanced weight system  self-closing door provides smooth, even, positive closure.
  • Environmentally friendly refrigerant (CFC and HCFC Free) R134a
