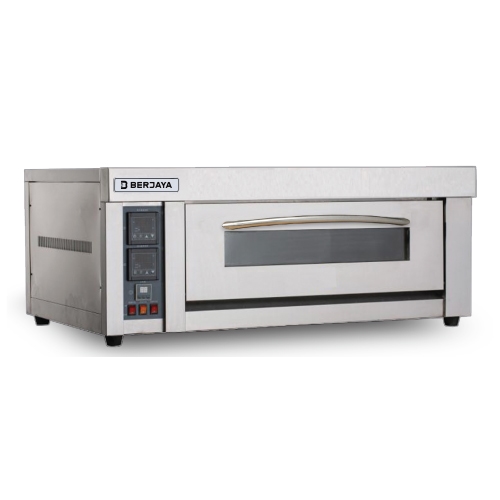

BJY-E6KW-1PRM

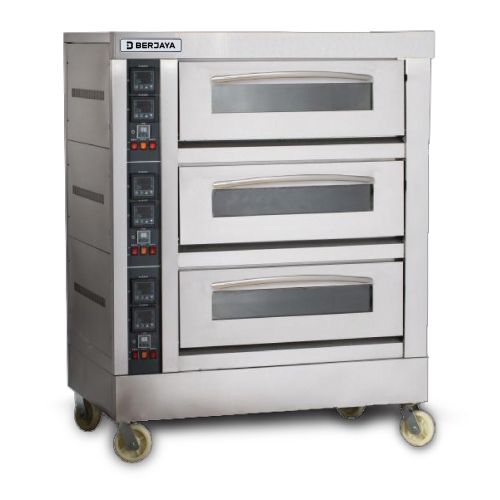

BJY-E20KW-3PRM

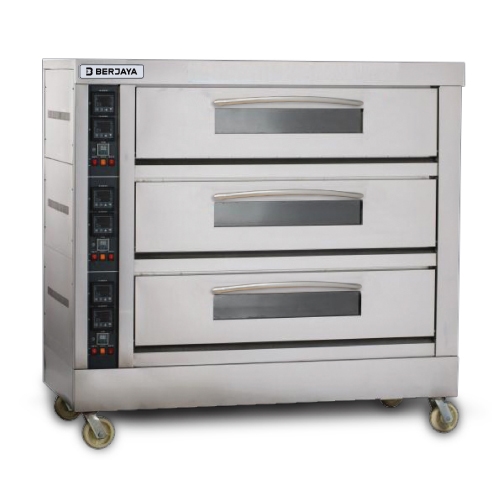

BJY-E25KW-3PRM
Electrical baking Oven (PRM Series)
Description
| Model | 1 Deck BJY-E3KW-1PRM | 1 Deck BJY-E6KW-1PRM | 2 Decks BJY-E13KW-2PRM | 3 Decks BJY-E20KW-3PRM | 3 Decks BJY-E25KW-3PRM |
| Capacity (kg/hr) | 10 | 20 | 40 | 60 | 90 |
| Temperature range °C | 20 – 400 | 20 – 400 | 20 – 400 | 20 – 400 | 20 – 400 |
| Voltage (V) | 220 – 240V / 1 | 220 – 240V / 1 | 380 – 415V / 3 | 380 – 415V / 3 | 380 – 415V / 3 |
| Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Rated Input Power (W) | 3000 | 6600 | 13200 | 19800 | 24000 |
| No. of Baking Tray | 1 | 2 | 4 | 6 | 9 |
| Inner Dimension / Deck (mm) | 670 x 470 x 180 | 870 x 670 x 220 | 870 x 670 x 220 | 870 x 670 x 220 | 1290 x 670 x 220 |
| Overall Dimension (mm) | 990 x 660 x 435 | 1280 x 875 x 575 | 1280 x 875 x 1245 | 1280 x 875 x 1640 | 1700 x 875 x 1640 |
| Packing Dimension (mm) | 1060 x 700 x 490 | 1360 x 910 x 560 | 1360 x 910 x 1310 | 1360 x 910 x 1670 | 1780 x 910 x 1650 |
| Weight (kg) | 45 | 78 | 149 | 200 | 275 |
| Remarks | – | * Isolator 35A / 1 Phase required | – | – | – |
Features
Features
- Stainless steel body construction (Externally).
- Easy to operate
- Oven operating range : 20 – 400°C
