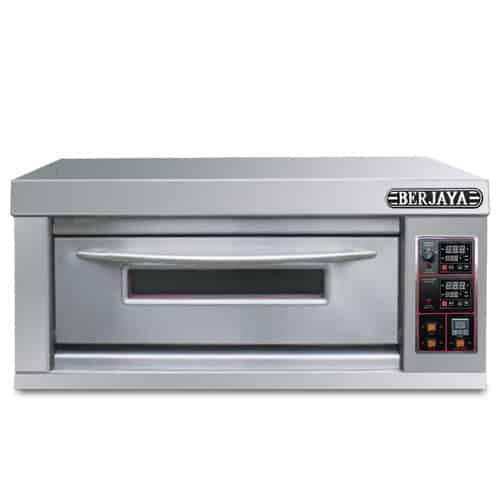

BJY-E6KW-1BDD

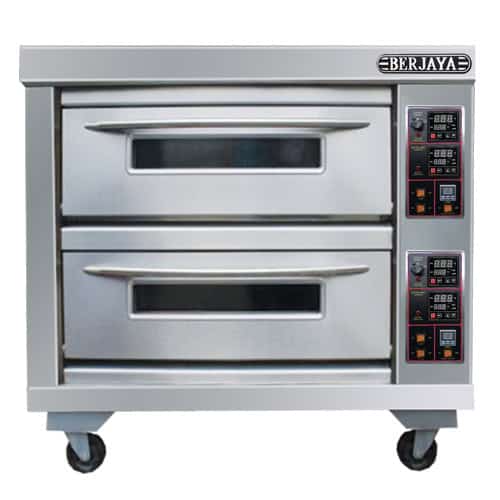

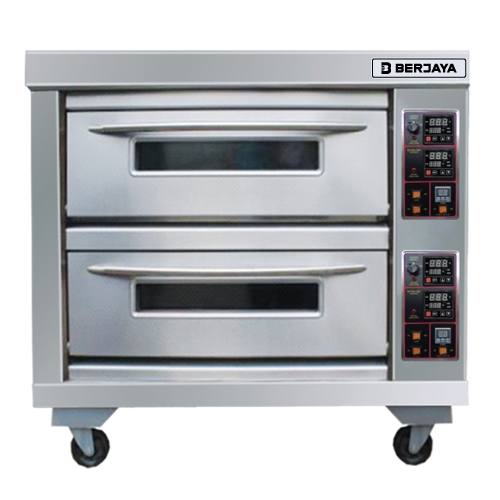

BJY-E13KW-2BDD

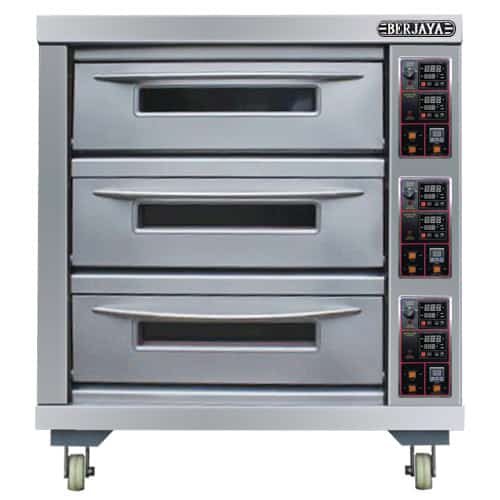

BJY-E20KW-3BDD

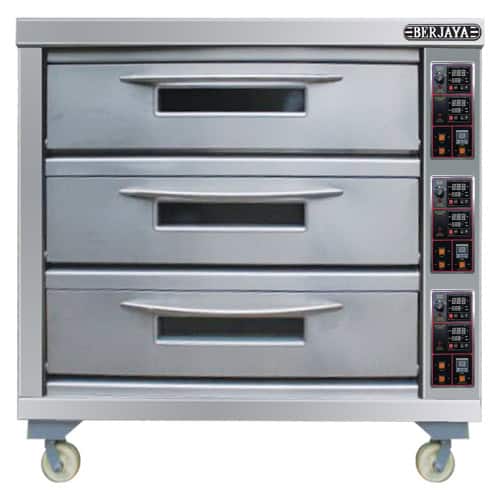

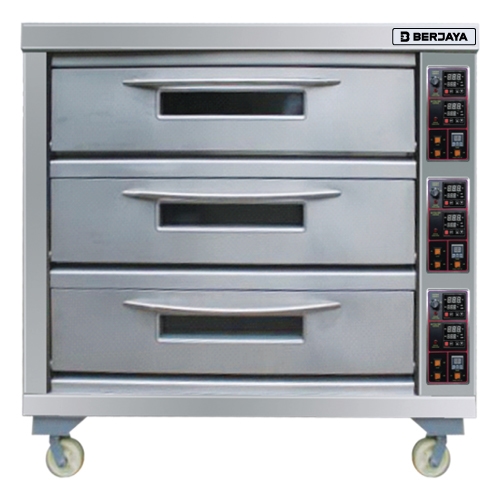

BJY-E25KW-3BDD

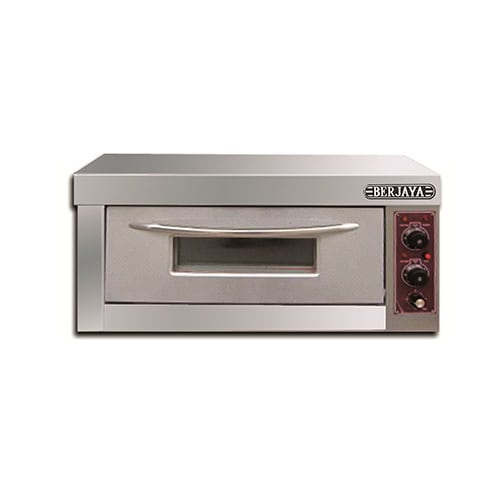

BJY-E3KW-1BD (1 Deck)

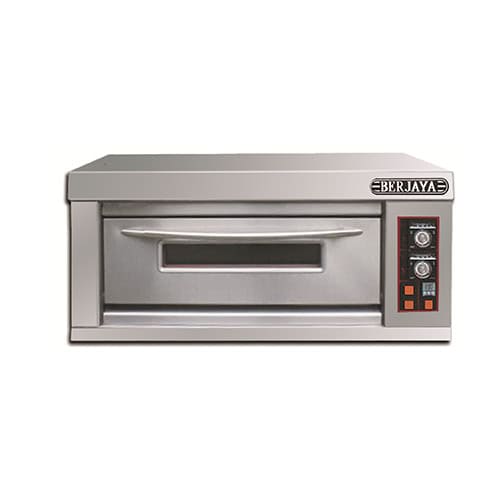

BJY-E6KW-1BD (1 Deck)

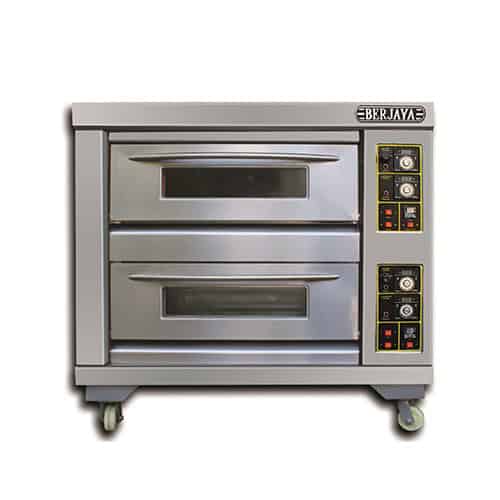

BJY-G120-2BD

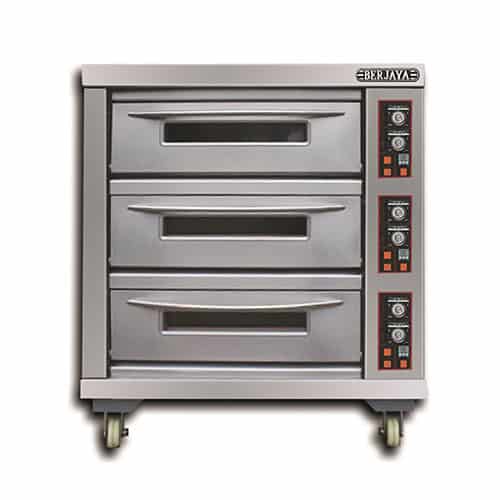

BJY-E20KW-3BD (3 Deck)

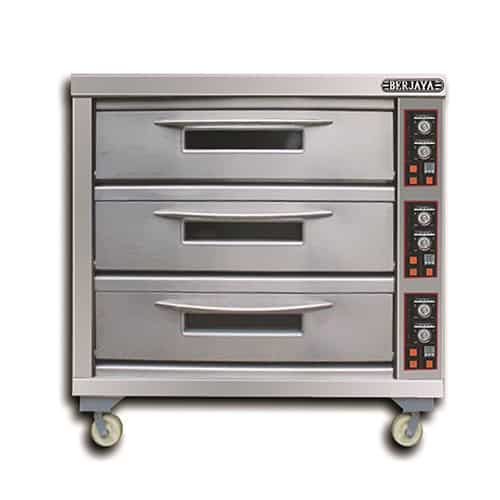

BJY-E25KW-3BD (3 Deck)
Electrical Baking Oven (BD & BDD Series)
Description
| Model Analog Controller Digital Controller |
1 Deck BJY-E3KW-1BD – |
1 Deck BJY-E6KW-1BD BJY-E6KW-1BDD |
2 Decks – BJY-E13KW-2BDD |
3 Decks – BJY-E20KW-3BDD |
3 Decks BJY-E25KW-3BD BJY-E25KW-3BDD |
| Capacity (Kg/hr) | 10 | 20 | 40 | 60 | 90 |
| Temperature Range (°C) – Analog Controller – Digital Controller |
– 20 – 300 – |
– 20 – 300 20 – 400 |
– 20 – 300 20 – 400 |
– 20 – 300 20 – 400 |
– 20 – 300 20 – 400 |
| Voltage/ Phase (V/Ph) | 220 – 240 / 1 | 220 – 240 / 1 | 380 – 415 / 3 | 380 – 415 / 3 | 380 – 415 / 3 |
| Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Rated Input Power (W) – Analog Controller – Digital Controller |
– 3000 – |
– 6600 6600 |
– 13200 13000 |
– 19800 19800 |
– 25200 25200 |
| No. of Baking Tray | 1 | 2 | 4 | 6 | 9 |
| Inner Dimension / Deck (mm) | 650 x 530 x 180 | 870 x 670 x 200 | 870 x 670 x 200 | 870 x 670 x 200 | 870 x 670 x 200 |
| Machine Dimension (mm) | 920 x 700 x 410 | 1250 x 845 x 615 | 1250 x 845 x 1220 | 1250 x 845 x 1615 | 1670 x 845 x 1640 |
| Packing Dimension (mm) | 980 x 740 x 450 | 1310 x 905 x 655 | 1310 x 905 x 1260 | 1310 x 905 x 1655 | 1730 x 905 x 1680 |
| Weight (Kg) – Analog Controller – Digital Controller |
– 41 – |
– 85 119 |
– 150 150 |
– 200 245 |
– 280 280 |
| Remark | – | Iolator 35A/1 Phase required | – | – | – |
Features
Features
Electrical Baking OvenÂ
- Double layered sighting window.
- Using infra-red emission heating tube, even baking temperature.
